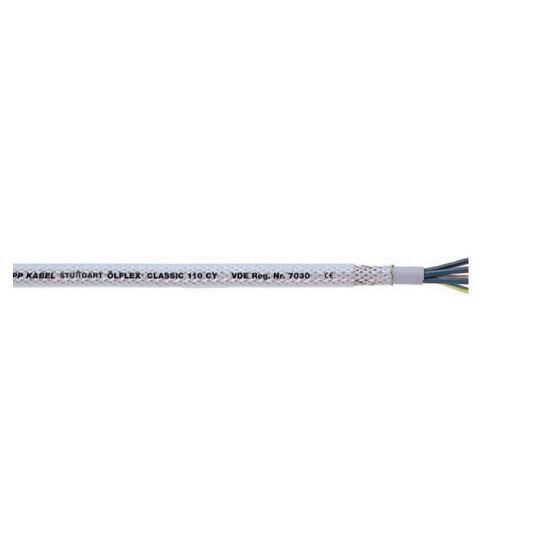

Olflex Classic 110 CY Flexible Control Cable VSD EMC Screened 2 Core 1.5mm 300/500V Copper PVC/EMC/PVC Clear

$Lapp_Kabel\Lapp_Kabel_1135902.jpg$

Description

Flexible Control Cable VSD EMC, 1.5 mm, Bare Copper, 300-500 Volt, 2 Core, 8.5 mm Overall Diameter, Static 51 mm Flexible 170 mm Bend Radius, 13.3 Ohm/km Conductor Resistance, Tinned Copper Braid Screen, Black/White Numerals Core, PVC Insulation, PVC Sheath, Clear Sheath, Static -40 to 80 deg C Flexible -5 to70 deg C, VDE 7030

Key Specifications

SKU	LAP1135902
Brand	Lapp Kabel
Range Name	Olflex Classic 110
Product Type	Flexible Control Cable VSD EMC

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Flame retardant Good chemical resistance High degree of screening low transfer impedance
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	1135902
Bend Radius	Static 51 mm - Flexible 170 mm
Conductor Resistance	13.3 Ohm/km
Conductor Size	1.5 mm
Conductor Type	Bare Copper
Core Colours	Black/White Numerals
Insulation Material	PVC
Number of Cores	2 Core
Overall Diameter	8.5 mm
Screen Material	Tinned Copper Braid
Sheath Colour	Clear
Sheath Material	PVC
Standards	VDE 7030
Temperature	Static -40 to 80 deg C Flexible -5 to70 deg C
Voltage	300-500 Volt
