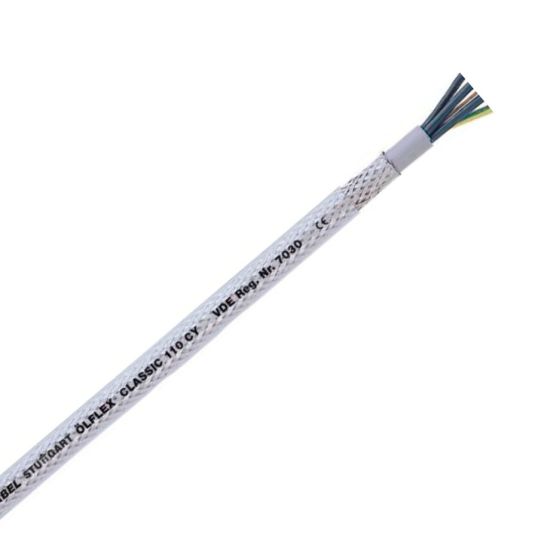

Olflex Classic 110 CY Flexible Control Cable VSD EMC Screened 11 Core & Earth 0.75mm 300/500V PVC/TCBS/PVC Clear

$Lapp_Kabel\Lapp_Kabel_Olflex_Classic110CY.jpg$

Description

Flexible Control Cable, VSD EMC Screened, 11 Core & Earth, 0.75 mm, Stranded Bare Copper, 300/500 Volt, 12.3 mm Overall Diameter, Bend Radius: Static - 73.8 mm Flexible - 246 mm, Tinned Copper Braid Screen, PVC Insulation, PVC Sheath, Black with White Numbered Cores, Clear Sheath, Static - -40 to 80 deg C Flexible - -5 to70 deg C, VDE 7030

Key Specifications

SKU	LAP1135112
Brand	Lapp Kabel
Range Name	Olflex Classic 110
Product Type	Flexible Control Cable VSD EMC

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Flame retardant Good chemical resistance High degree of screening low transfer impedence
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	1135112
Bend Radius	Static: 73.8 mm - Flexible: 246 mm
Conductor Size	0.75 mm
Conductor Type	Bare Copper
Core Colours	Black/White Numerals
Insulation Material	PVC
Number of Cores	11 Core + Earth
Overall Diameter	12.3 mm
Screen Material	Tinned Copper Braid
Sheath Colour	Clear
Sheath Material	PVC
Standards	VDE 7030
Temperature	Static: -40 to 80 deg C Flexible: -5 to70 deg C
Voltage	300-500 Volt
