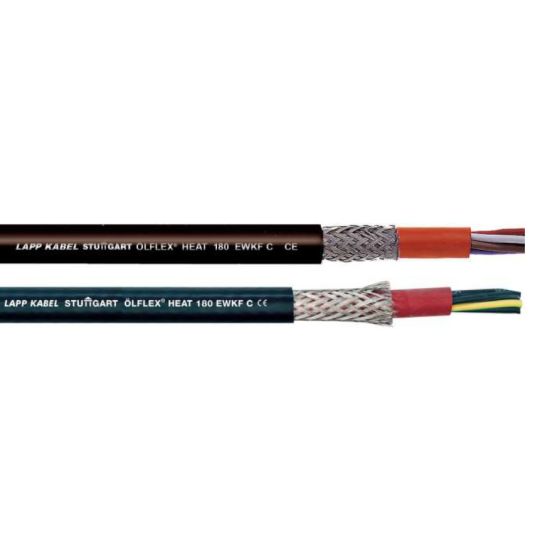

Lapp Kabel 1.5mm 3 Core + Earth Black Expanded Ambient Temperature Flexible Wire Double Insulated Silicone Rubber

Description

Flexible Wire, Expanded Ambient Temperature, Double Insulated, 1.5 mm, Tinned Annealed Copper, 0.3-0.5 kV, 3 Core + Earth, 12 mm Overall Diameter, 72 mm Static/240 mm Flexible Bend Radius, Silicone Rubber Insulation, Silicone Rubber Sheath, Black Sheath, -50 to 180 deg C

Key Specifications

SKU	LAP00463153
Brand	Lapp Kabel
Range Name	Olflex Heat 180

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Halogen free No corrosive gases Flame retardant Resistant to multitude of oils, alcohols, vegetable and animal fats and chemical substance Adequate Ventilation must be ensured since the mechanical properties of silicone cable decreases from 100 deg C in the absence of air Good hydrolysis and UV resistance EWKF: Intial tear propagation and notch resistance
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	00463153
Bend Radius	Static 72 mm - Flexible 240 mm
Conductor Size	1.5 mm
Conductor Type	Tinned Annealed Copper
Insulation Material	Silicone Rubber
Overall Diameter	12 mm
Number of Cores	3 Core + Earth
Sheath Colour	Black
Sheath Material	Silicone Rubber
Temperature	-50 to 180 deg C
Voltage	0.3-0.5 kV
