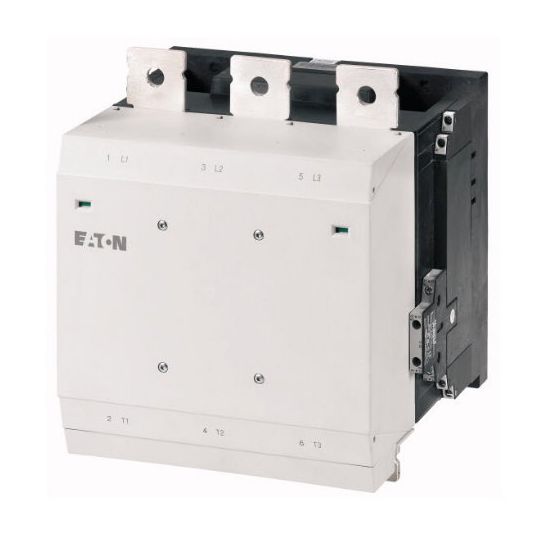

Eaton Moeller Contactor General Purpose AC Operated Non-Reversing 3 Pole 315kW 580A AC3 980A AC1 250-500V 2NO-2NC Aux

Description

Contactor General Purpose AC Operated Non-Reversing, 250-500 Volt AC at 40-60 Hz or 250-700 Volt DC, AC3 Rating (kW): 600 at 1000 Volt, 315 at 380/400 Volt, 185 at 220/230 Volt, AC3 Rating (Amps): 580 at 380/400 Volt, AC1 Rating (Amps): 980 Open, 500 Volt AC, 2NO-2NC Auxiliary, 3 Pole, Screw Terminal, DIN Rail/Base Mount, IP00, -40 to 60 deg C, 232 mm Height, 270 mm Width, 232 mm Depth, 3 Phase

Key Specifications

SKU	KLODILM580/22RAC500
Brand	Eaton Moeller
Range Name	Original Series
Product Type	Contactors Non-Reversing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Contactors for motors
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	DILM580/22(RAC500)
AC1 Rating (Amps)	980 Amp AC1
AC3 Rating (Amps)	580 Amp AC3
AC3 Rating (kW)	600/185 kW
Contact Configuration	1 Normally Opened & 1 Normally Closed Aux
Contact Voltage	500 Volt AC
Depth	232 mm
Height	232 mm
IP Rating	IP00
Mounting Method	DIN Rail/Base
Number Of Poles	3 Pole
Operating Coil Voltage	250-500 Volt AC/250-700 Volt DC
Please Note	3 Phase
Temperature	-40 to 60 deg C
Terminal Connection	Screw
Width	270 mm
