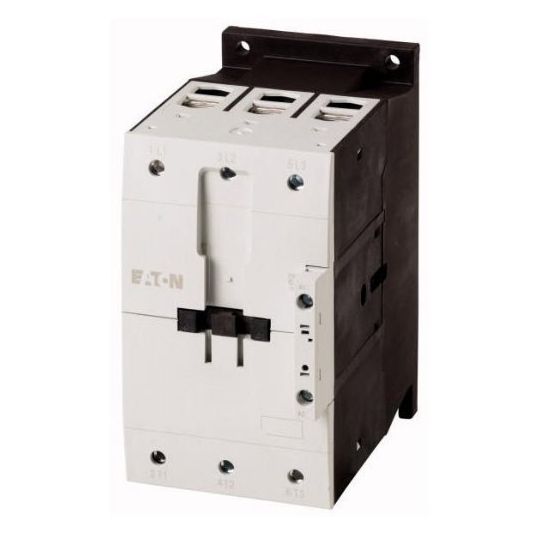

Eaton Moeller Contactor General Purpose AC Operated Non-Reversing 3 Pole 75kW 150A AC3 190A AC1 440/500V

Description

Contactor General Purpose AC Operated Non-Reversing, 440/500 Volt AC, AC3 Rating (kW): 96 at 660/690 Volt, 75 at 380/400 Volt, 48 at 220/230 Volt, AC3 Rating (Amps): 150 at 380/400 Volt, AC1 Rating (Amps): 190 Open, 144 Enclosed, 690 Volt AC, 3 Pole, Operating Time: 15 ms, Screw Terminal, DIN Rail/Base Mount, IP00, -25 to 60 deg C, 170 mm Height, 111 mm Width, 175 mm Depth, Also suitable for motors with efficiency class IE3, 3 Phase

Key Specifications

SKU	KLODILM150RAC440
Brand	Eaton Moeller
Range Name	X-Start
Product Type	Contactors Non-Reversing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Contactors for motors
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	DILM150(RAC440)
AC1 Rating (Amps)	190/144 Amp AC1
AC3 Rating (Amps)	150 Amp AC3
AC3 Rating (kW)	96/75/48 kW
Contact Voltage	690 Volt AC
Depth	175 mm
Height	170 mm
IP Rating	IP00
Mounting Method	DIN Rail/Base
Number Of Poles	3 Pole
Operating Coil Voltage	440-500 Volt AC
Operating Time	15 ms
Please Note	Also suitable for motors with efficiency class IE3, 3 Phase
Temperature	-25 to 60 deg C
Terminal Connection	Screw
Width	111 mm
