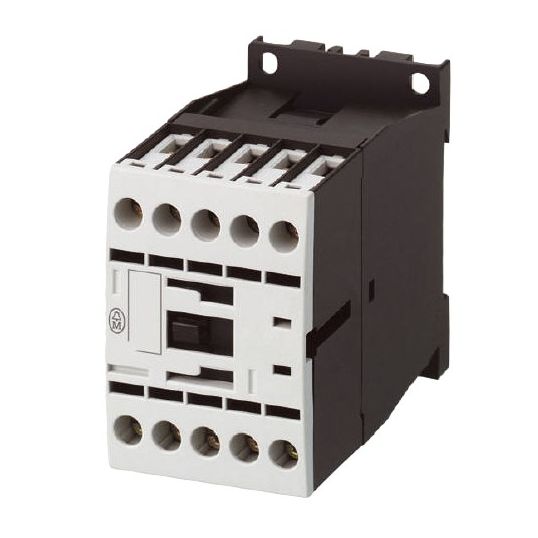

Eaton Moeller Contactor Control Relay Switching 4 Pole 4A 24VDC 2NO-2NC DIN Rail/Base Mount
Loading...
Description
Contactor Control Relay Switching, AC15 Rating: 240 Volt AC at 4 Amp, 24 Volt DC, 2NO+2NC, 4 Pole, Screw Terminal, DIN Rail/Base Mount, IP20, -25 to 60 deg C, 68 mm Height, 45 mm Width, 117 mm Depth
Key Specifications
| SKU |
KLODILA-2224VDC
|
|---|---|
| Brand |
Eaton Moeller
|
| Range Name |
X-Start
|
| Product Type |
Contactors Switching
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | DILA-22(24VDC) |
| Contact Configuration | 2 Normally Opened & 2 Normally Closed |
| AC15 Rating | 4 Amp 240 Volt |
| Depth | 117 mm |
| Height | 68 mm |
| IP Rating | IP20 |
| Number Of Poles | 4 Pole |
| Mounting Method | DIN Rail/Base |
| Operating Coil Voltage | 24 Volt DC |
| Temperature | -25 to 60 deg C |
| Width | 45 mm |
| Terminal Connection | Screw |
