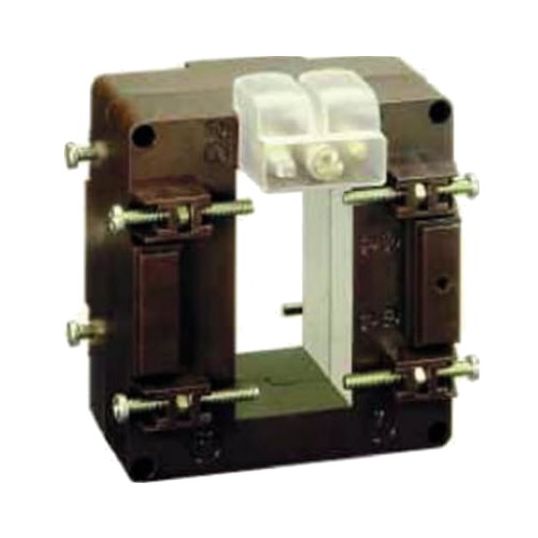

IME Current Transformer For Horizontal Busbars Primary 750A/ Secondary 5A

Description

Current Transformer For Horizontal Busbars, Primary 750 Amp/Secondary 5 Amp, 50 Hz, Insulation Class: B, IP00, IP40, IP20, Busbar Mount, Polycarbonate, -25 to 50 deg C, 90 mm Height x 40 mm Width x 94 mm Depth, 65 mm Height x 32 mm Width Window

Key Specifications

SKU	IMETAS65H/750/5A
Brand	IME
Range Name	TAS65
Product Type	Transformers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	A broad range of primary currents Cable or busbar type Solid core High accuracy Class 0.5
Standard Pack Size	1
UNSPSC Class	39121000
UOM	EA
Vendor Product	TAS65H7505A
Current	Primary 750 Amp/Secondary 5 Amp
Depth	94 mm
Frequency	50 Hz
Height	90 mm
Insulation Class	B
IP Rating	IP00/40/20
Mounting Method	Busbar
Please Note	65 mm Height x 32 mm Width Window
Temperature	-25 to 50 deg C
Width	40 mm
