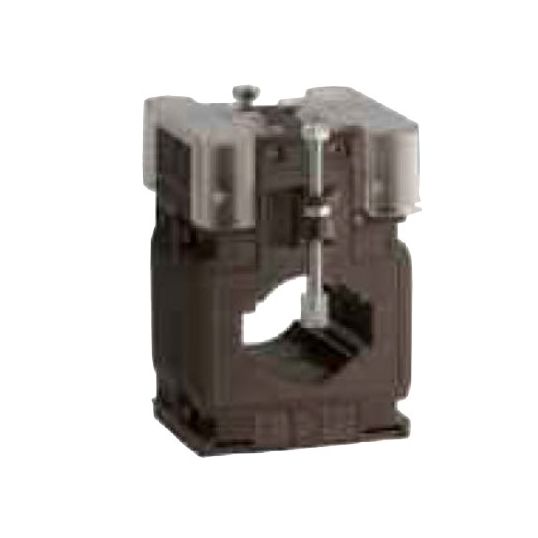

IME Current Transformer For Cable Primary 80A/ Secondary 1A

Description

Current Transformer For Cable, Primary 80 Amp/Secondary 1 Amp, 50 Hz, Insulation Class: B, IP40, IP20, Busbar/Din Rail Mount, Polycarbonate, -25 to 50 deg C, 36 mm Height x 71 mm Width x 80 mm Depth, 27 mm Window Diameter

Key Specifications

SKU	IMETA327801A
Brand	IME
Product Type	Transformers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	A broad range of primary currents Cable or busbar type Solid core High accuracy Class 0.5
Standard Pack Size	1
UNSPSC Class	39121000
UOM	EA
Vendor Product	TA327801A
Current	Primary 80 Amp/Secondary 1 Amp
Depth	80 mm
Frequency	50 Hz
Height	36 mm
Insulation Class	B
IP Rating	IP40/20
Mounting Method	Busbar/DIN Rail
Please Note	27 mm Window Diameter
Temperature	-25 to 50 deg C
Width	71 mm
