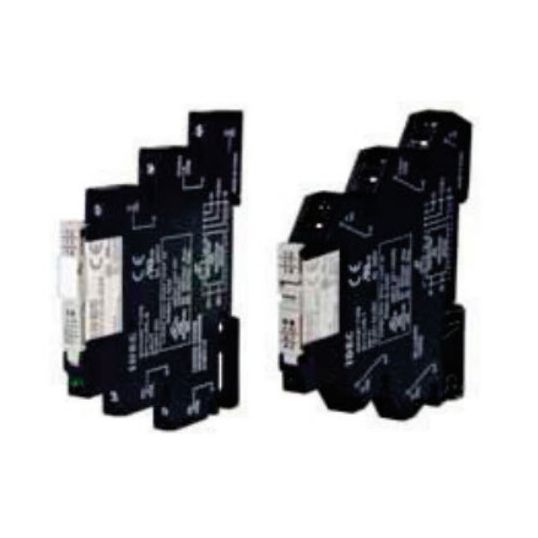

IDEC Interface Relay DIN Rail Mounting 1P 1CO SPDT 6A 12VAC/DC

Description

Interface Relay DIN Rail Mounting, 12 Volt AC/DC Coil Voltage, 6 Amp AC15, 0.2 Watt, 1 Pole, SPDT Configuration, 800 Ohm, 15 Operate/20 Release ms Operating Time, Screw Terminal, DIN Rail Mounting, IP20, AgNi (Au plated) Contact, -40 to 70 deg C, 88 mm Height, 6 mm Width, 6.1 mm Depth

Key Specifications

Barcode (EAN-13)	9322017227906
SKU	IDCRV8H-L-AD12
Brand	IDEC
Product Type	Interface Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Lever for easy locking and removal of relay Only 71 mm in height from DIN rail Pre-assembled relay and DIN mount socket Universal screw terminals Universal AC/DC socket with built-in surge suppression and green LED 6 Amp contact rating on 6 mm RV8H, 8 Amp on RV8H-2, 16 Amp rating on RV8H-1
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	RV8H-L-AD12
Contact Material	AgNi (Au plated)
Contact Configuration	SPDT
Mounting Method	DIN Rail
Depth	6.1 mm
IP Rating	IP20
Height	88 mm
Number Of Poles	1 Pole
Operating Coil Voltage	12 Volt AC/DC
Operating Time	15 Operate/20 Release ms
Power Rating	0.2 Watt
Temperature	-40 to 70 deg C
Resistance	800 Ohm
Terminal Type	Screw
Width	6 mm
