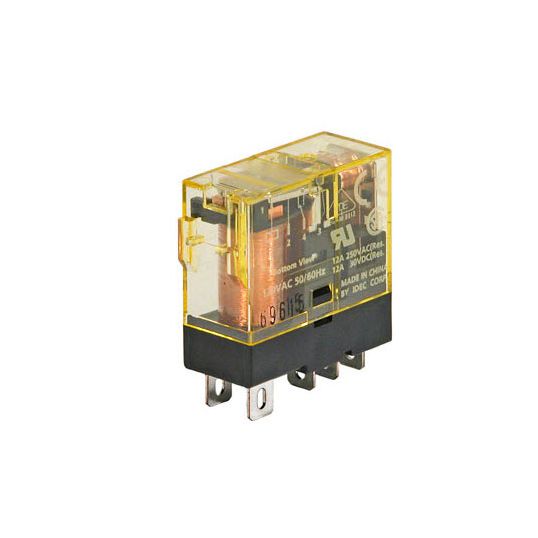

IDEC Miniature General Purpose Relay Plug-In Mount 1P SPDT 12A 12VDC 5 Pin Flat

Description

Miniature General Purpose Relay, 12 Volt DC, 12 Amp, 0.53 Watt, 5 Pin Flat, 1 Pole, SPDT, 271 Ohm, Operating Time: 15 Operate/10 Release ms, 200000 Cycles AC Load, 100000 Cycles DC Load, IP40, Plug-In Mount, Silver-Nickel Alloy, -40 to 70 deg C, 28.8 mm Height, 31.1 mm Width, 12.7 mm Depth

Key Specifications

Barcode (EAN-13)	9322017188474
SKU	IDCRJ1S-CL-D12
Brand	IDEC
Range Name	RJ Series
Product Type	Power Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Ideal for space saving application Up to 16A rated contacts Highly visible Indicator LED using IDEC's unique light guide design 30 million cycles (AC coil) and 50 million cycles (DC coil) mechanical life
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	RJ1S-CL-D12
Contact Material	Silver-Nickel Alloy
Current	12 Amp
Contact Configuration	SPDT
Mounting Method	Plug In
Depth	12.7 mm
IP Rating	IP40
Height	28.8 mm
Number Of Poles	1 Pole
Operating Coil Voltage	12 Volt DC
Operating Cycles	200000 Cycles AC Load, 100000 Cycles DC Load
Operating Time	15 Operate/10 Release ms
Pin Configuration	5 Pin Flat
Power Rating	0.53 Watt
Temperature	-40 to 70 deg C
Resistance	271 Ohm
Width	31.1 mm
