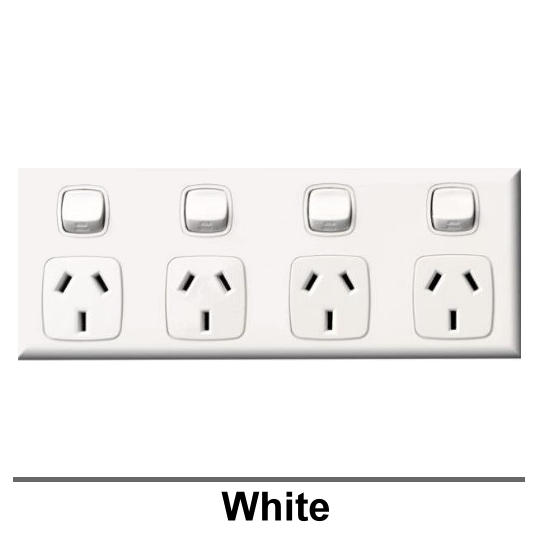

HPM Power Point Flush Mount Standard 4 Gang 10A 240V 1 Pole Horizontal White
Loading...
Description
GPO Switched Outlet, 240 Volt, 10 Amp, 50 Hz, 3 Pin Flat, 1 Pole, 4 Gang, Horizontal Orientation, Flush Mounting, 84 mm Mounting Centres, Screw Connection, Rocker Switch/Button Actuator, Plastic, White, Matte, 73 mm Height, 117 mm Width, 12.5 mm Depth
Key Specifications
| Barcode (EAN-13) |
9321001114772
|
|---|---|
| SKU |
HPMXL7774WE
|
| Brand |
HPM
|
| Range Name |
Excel Series
|
| Product Type |
GPO Standard
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | XL7774WE |
| Connection Type | Screw |
| Actuator Type | Rocker Switch/Button |
| Colour | White |
| Current | 10 Amp |
| Depth | 12.5 mm |
| Frequency | 50 Hz |
| Finish | Matte |
| Height | 73 mm |
| Material | Plastic |
| Mounting Centres | 84 mm |
| Mounting Method | Flush |
| Number Of Gangs | 4 Gang |
| Number Of Poles | 1 Pole |
| Orientation | Horizontal |
| Pin Configuration | 3 Pin Flat |
| Voltage | 240 Volt |
| Width | 117 mm |
