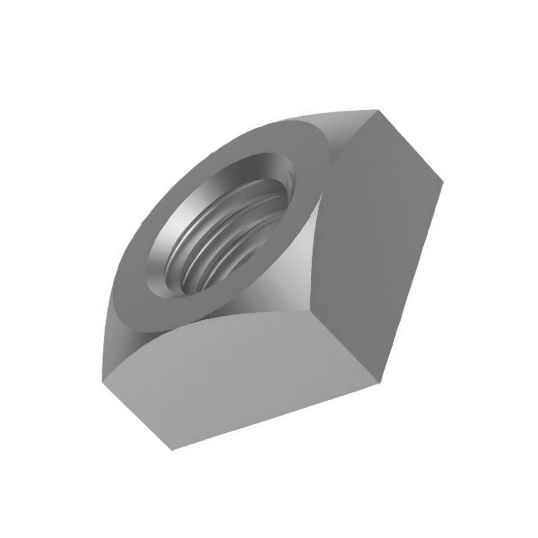

Hobson Square Nut M10x1.5 Coarse DIN 557 Grade A4-70 316 Stainless Steel
Loading...
Description
Square Nut, Metric, M10, 1.5 mm Pitch, Coarse Thread, 7.42-8 mm Height, 16.57-17 mm Width Across Flat, 21.54-24 mm Width Across Corner, Grade A4-70, 316 Stainless Steel, DIN 557, Chamfered
Key Specifications
| Barcode (EAN-13) |
9350629013136
|
|---|---|
| SKU |
HOBNQ16PCM10
|
| Brand |
Hobson
|
| Product Type |
Strut Fasteners & Fixings
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 30101800 |
| UOM | EA |
| Vendor Product | NQ16PCM10 |
| Grade | Grade A4-70 |
| Fitting Size | M10 |
| Imperial-Metric | Metric |
| Height | 7.42-8mm |
| Please Note | Chamfered |
| Standards | DIN 557 |
| Thread Pitch | 1.5mm |
| Thread Type | Coarse |
| Width Across Corner | 21.54-24mm |
| Width Across Flat | 16.57-17mm |
