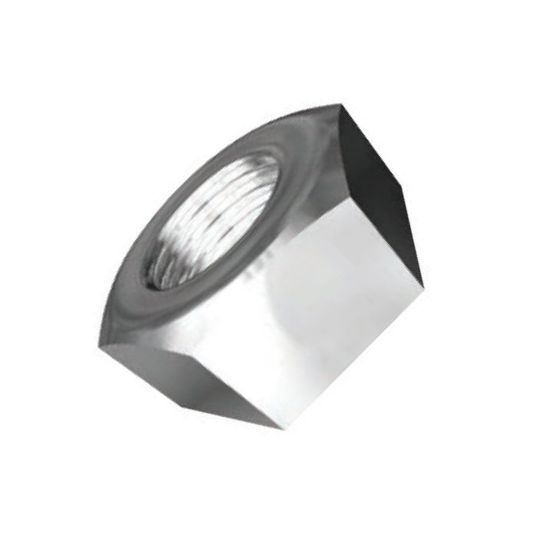

Hobson Hex Nut M12x1.75 Coarse DIN 934 Grade A4-70 316 Stainless Steel
Loading...
Description
Hex Nut, Metric, M12, Hex Head, Coarse, 1.75 mm, A4-70 Grade, 316 Stainless Steel, 18.67-19 mm Width Across Flat, 21.1-21.94 mm Width Across Corner, 9.64-10 mm Height, DIN 934
Key Specifications
| Barcode (EAN-13) |
9314818360319
|
|---|---|
| SKU |
HOBNH16PCM12
|
| Brand |
Hobson
|
| Product Type |
Strut Fasteners & Fixings
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 30101800 |
| UOM | EA |
| Vendor Product | NH16PCM12 |
| Grade | A4-70 |
| Fitting Size | M12 |
| Head Type | Hex |
| Imperial-Metric | Metric |
| Height | 9.64-10 mm |
| Material | 316 Stainless Steel |
| Standards | DIN 934 |
| Thread Pitch | 1.75 mm |
| Thread Type | Coarse |
| Width Across Corner | 21.1-21.94 mm |
| Width Across Flat | 18.67-19 mm |
