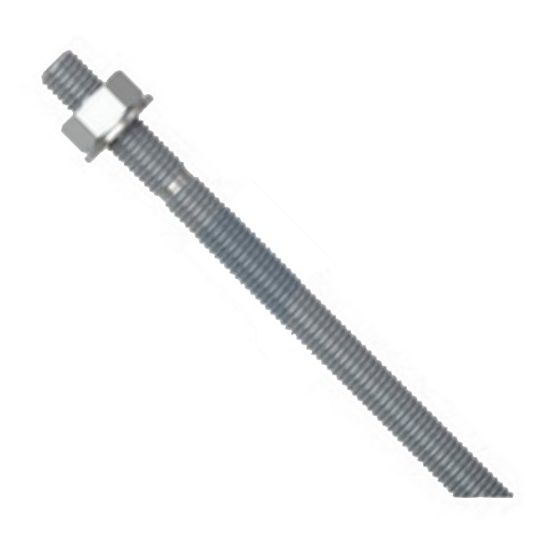

Hobson Stud Chemical Anchor Kit Flat Top Stud M16x190 mm Hex Nut Head Class 5.8 Hot Dip Galvanised

Description

Stud Chemical Anchor Kit Flat Top Stud, M16, M16 Thread, Hex Nut Head, 24mm Socket Head, 190mm Length, 18mm Drill Diameter, Class 5.8, Hot Dip Galvanised, 125mm Embedment Depth, 43mm Max. Fixture Thickness, 18mm Fixture Hole Diameter, 160mm Min. Concrete Thickness, 65mm Min. Edge Distance, 65mm Min. Spacing, Tensile Strength: 520 MPa, Torque Rating: 80 N-m, Angle Cut Point

Key Specifications

Barcode (EAN-13)	9314818501583
SKU	HOBMCS58GCM160190
Brand	Hobson

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Good load capability Non expanding type fastener Resistant to vibration Complete sealing of hole Can be installed close to edge Reduced spacing between anchors Excellent holding power in weak base materials
Standard Pack Size	10
UNSPSC Class	31162100
UOM	EA
Vendor Product	MCS58GCM160190
Drill Diameter	18mm
Diameter	M16
Embedment Depth	125mm
Finish	Hot Dip Galvanised
Fixture Hole Diameter	18mm
Grade	Class 5.8
Head Size	24mm Socket
Head Type	Hex Nut
Maximum Fixture Thickness	43mm
Minimum Concrete Thickness	160mm
Minimum Edge Distance	65mm
Minimum Spacing	65mm
Please Note	Angle Cut Point
Product Type	simple
Tensile Strength	520 MPa
Thread Size	M16
Torque Rating	80 N-m
