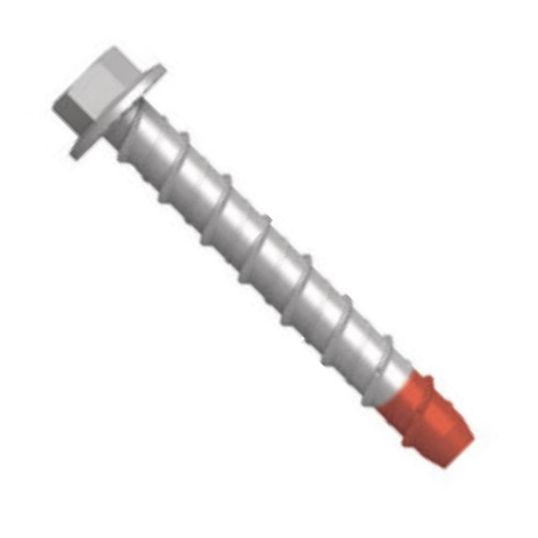

Hobson Flanged Hex Head Tie Down Screw Anchor M8x60mm Carbon Steel Mechanical Galvanised

Description

Screw Anchor Tie Down Flanged Hex Head, M8 Diameter, Flanged Hex Head, 13 mm Head Size, 17.9 mm Washer Diameter, 60 mm Length, 8 mm Drill Diameter, 40 mm Embedment Depth, 11 mm Fixture Hole Diameter, 40 mm Minimum Edge Distance, 40 mm Minimum Spacing, Carbon Steel, Galvanised

Key Specifications

Barcode (EAN-13)	9350499010389
SKU	HOBFSMXHMSGM080060
Brand	Hobson

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	No expansion forces, enabling smaller edge distances and anchor spacings Simple installation through object to be fastened Case hardened that enables the anchor to cut the concrete and lock itself in place Variety of diameters & lengths to suit different applications Fully removable Can be immediately used
Standard Pack Size	20
UNSPSC Class	31162100
UOM	EA
Vendor Product	FSMXHMSGM080060
Drill Diameter	8 mm
Diameter	M8
Embedment Depth	40 mm
Finish	Galvanised
Fixture Hole Diameter	11 mm
Head Size	13 mm
Head Type	Flanged Hex
Material	Carbon Steel
Minimum Edge Distance	40 mm
Minimum Spacing	40 mm
Product Type	simple
Washer Diameter	17.9 mm
