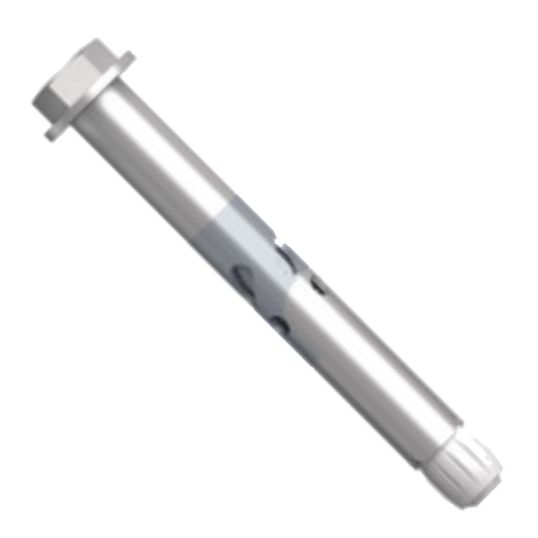

Hobson Sleeve Anchor Flush Head 8x70mm Class 8.8 Zinc Passivated Yellow

Description

Sleeve Anchor Flush Head, 8 mm, M6 Thread, 10mm Width Head, 12.8mm Washer Diameter, 70mm Length, 40mm Min Drill Depth, 8mm Drill Diameter, Class 8.8, Zinc Passivated Yellow, 10mm Fixture Hole Diameter, 100mm Min. Concrete Thickness, 50mm Min. Edge Distance, 50mm Min. Spacing, Torque Rating: 8 N-m

Key Specifications

Barcode (EAN-13)	9350499012086
SKU	HOBFSMTH88YM080070
Brand	Hobson

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Simple installation through object to be fastened Variety of diameters & lengths to suit different applications Low costs on supply and installation Can be immediately used
Standard Pack Size	20
UNSPSC Class	31162100
UOM	EA
Vendor Product	FSMTH88YM080070
Drill Diameter	8mm
Drill Depth	40mm Min
Diameter	8mm
Finish	Zinc Passivated Yellow
Fixture Hole Diameter	10mm
Grade	Class 8.8
Head Size	10mm Width
Head Type	Flush
Minimum Concrete Thickness	100mm
Minimum Edge Distance	50mm
Minimum Spacing	50mm
Product Type	simple
Thread Size	M6
Torque Rating	8 N-m
Washer Diameter	12.8mm
