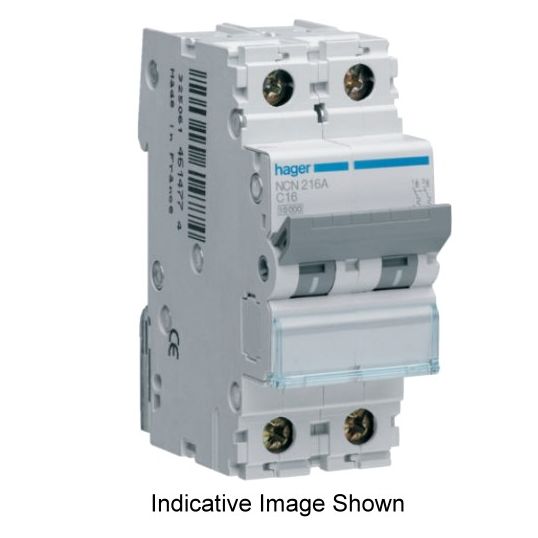

Hager Miniature Circuit Breaker D Curve 32Amp 10kA 2Pole 2Module 36mm DIN Rail Mount

Description

Miniature Circuit Breaker D Curve, 400 Volt AC, 32 Amp, Interrupt Capacity: 10 kA, Number of Modules: 2, 36mm Module Width, Number of Poles: 2, Trip Characteristic: D Curve, 2.8 N/m Tightening Torque, Screw Terminal, IP20, 4000 Cycles, 1 to 25 mm Flexible/1 to 35 mm Rigid Cable, DIN Rail, 50 deg C, 83mm Height x 35mm Width x 70mm Depth

Key Specifications

Barcode (EAN-13)	3250614619120
SKU	HAGNDN232A
Brand	Hager
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	NDN232A
Cable Size	1-25 sq-mm Flexible / 1-35 sq-mm Rigid
Depth	70 mm
Current	32 Amp
Height	83 mm
Interrupt Capacity	10 kA
IP Rating	IP20
Modules	2 Module 36mm
Mounting Method	DIN Rail
Number Of Poles	2 Pole
Terminal Type	Screw
Temperature	50 deg C
Tightening Torque	2.8 Nm
Voltage	400 Volt
Width	35 mm
