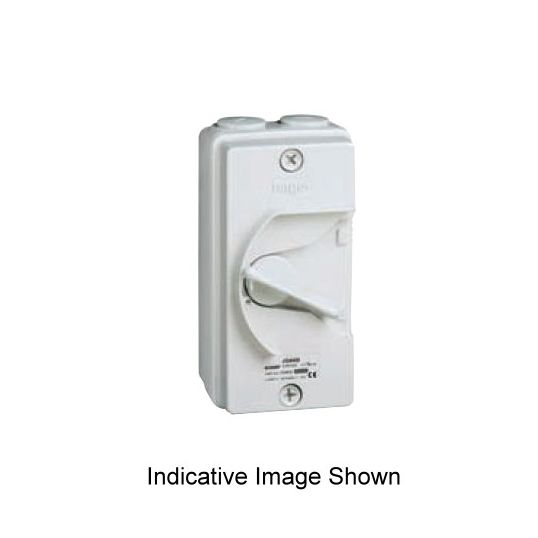

Hager Isolating Switch Surface Mounting Weatherproof 4P 20A 380-440V Grey IP66
Loading...
Description
Isolator Switch Weatherproof, 380-440 Volt AC, 20 Amp AC1, 50/60 Hz, 4 Pole, Screw Connection, Surface Mounting, IP66, 2.5-4 mm Terminal Capacity, Grey, -5 to 40 deg C, 170 mm Height, 84 mm Width, 87 mm Depth, Threaded Entries
Key Specifications
| Barcode (EAN-13) |
3250617509756
|
|---|---|
| SKU |
HAGJG420IN
|
| Brand |
Hager
|
| Range Name |
Hagerblu IP66
|
| Product Type |
Isolating Switches
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | JG420IN |
| Colour | Grey |
| Connection Type | Screw |
| Frequency | 50/60 Hz |
| Depth | 87 mm |
| Height | 170 mm |
| IP Rating | IP66 |
| Mounting Method | Surface |
| Number Of Poles | 4 Pole |
| Please Note | Threaded Entries |
| Voltage | 380-440 Volt AC |
| Width | 84 mm |
| Terminal Capacity | 2.5-4 mm |
| Temperature | -5 to 40 deg C |
