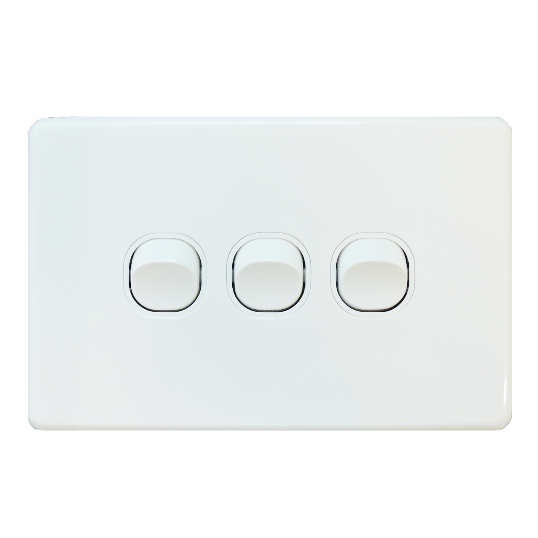

GSME Switch Cover Plate Flush Mount Standard 3 Gang 16A/10AX 250V Horizontal White

$GSME\GSME_PUSW3G.png$

Description

Switch Cover Plate, 250 Volt Switch, 16 Amp/10 Amp AX, 3 Gang, 2 Way, Screw Connection, Brass Tunnel Terminal, 4 x 1.5 sq-mm Terminal Capacity, Horizontal Orientation, Wall Mounting, 84 mm Mounting Centres, UV Stabilised Polycarbonate, White, 116.5 mm Height, 75.5 mm Width, 25.8 mm Depth

Key Specifications

Barcode (EAN-13)	9349703004511
SKU	GSMPUSW3G
Brand	GSME Trader
Range Name	Puma
Product Type	Covers & Grids

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Fits standard Australian wall boxes and mounting accessories that use 84 mm mounting centres Uses brass tunnel terminals that have the screws backed out for easier installation of cabling Switches are 2 way with looping terminal and suit 4 x 1.5 sq-mm cabling with 4.1 mm bore Slotted head screws for the terminals Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow Plates suit Trader Meerkat MESW mechanisms including TV and data and Clipsal 30 style mechanisms and accessories
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	PUSW3G
Colour	White
Connection Type	Screw
Depth	25.8 mm
Height	116.5 mm
Material	UV Stabilised Polycarbonate
Mounting Centres	84 mm
Mounting Method	Wall
Number Of Gangs	3 Gang
Number Of Ways	2 Way
Orientation	Horizontal
Terminal Capacity	4 x 1.5 sq-mm
Terminal Type	Brass Tunnel
Width	75.5 mm
