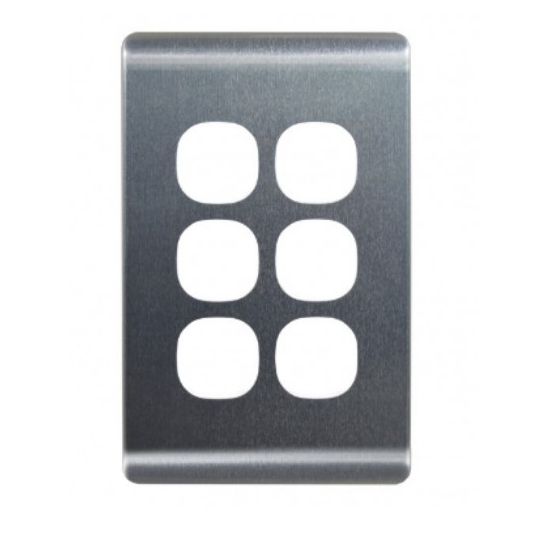

GSME Switch Cover Plate Flush Mount Standard 6 Gang Brushed Aluminium

$GSME\GSME_LESWPV6GCBA.jpg$

Description

Switch Cover Plate Standard, 6 Gang, Mounting Centres: 84 mm, Flush Mount, UV-Stabilized Polycarbonate, Brushed Aluminium, 114.8 mm Height, 25.4 mm Width, 72.7 mm Depth, 7.5 mm Thickness

Key Specifications

Barcode (EAN-13)	9349703010024
SKU	GSMLESWPV6GCBA
Brand	GSME Trader
Range Name	Leopard
Product Type	Covers & Grids

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Fits standard Australian wall boxes and mounting accessories that use 84 mm mounting centres Uses brass tunnel terminals that have the screws backed out for easier installation of cabling Switches are 2 way with looping terminal and suit 4 x 1.5 sq-mm cabling with 4.1 mm bore Slotted head screws for the terminals Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow Uses cat flap screw covers for IP rated mounting screws
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	LESWPV6GCBA
Colour	Brushed Aluminium
Depth	72.7 mm
Height	114.8 mm
Material	UV-Stabilized Polycarbonate
Mounting Centres	84 mm
Number Of Gangs	6 Gang
Mounting Method	Flush
Orientation	Vertical
Width	25.4 mm
Thickness	7.5 mm
