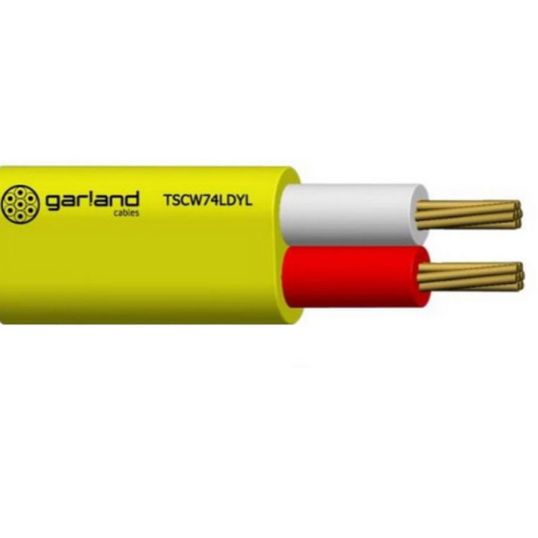

Garland 0.88 mm Fire Rated Cable Figure 8 PVC/PVC Yellow 500mtr

Description

Fire Rated Cable, Figure 8, 2 Core, 0.88 mm, Plain Annealed Copper, 7/0.4 mm Strands, 3.2 mm x 6.4 mm Overall Diameter, Bend Radius: Static - 32 mm, 0.48 mm Insulation Thickness, 0.5 mm Sheath Thickness, Elongation: Insulation - >100% Outer Sheath - >100%, 123 N Pulling Tension, Tensile Strength: Before Aging - >12 MPa, Conductor Resistance: DC - 21.8 Ohm/km, Insulation Resistance: 50 Mohm/km, PVC Insulation, PVC Sheath, Red White Cores, Melon Yellow RAL 1028 Sheath, -15 to 70 deg C, AS/CA S-008, AS 1049

Key Specifications

SKU	GARTSCW74LDYL500
Brand	Garland
Product Type	Fire Rated Cable Figure 8

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TSCW74LDYL500
Bend Radius	Static 32 mm
Conductor Resistance	21.8 Ohm/km
Conductor Size	0.88 mm
Conductor Type	Annealed Copper
Core Colours	Red/White
Insulation Material	PVC
Insulation Thickness	0.48 mm
Number of Cores	2 Core
Overall Diameter	3.2 x 6.4 mm
Pulling Tension	123 N
Sheath Colour	Yellow
Sheath Material	PVC
Sheath Thickness	0.5 mm
Standards	AS/CA S-008 AS 1049
Stranding	7/0.4 mm
Temperature	-15 to 70 deg C
