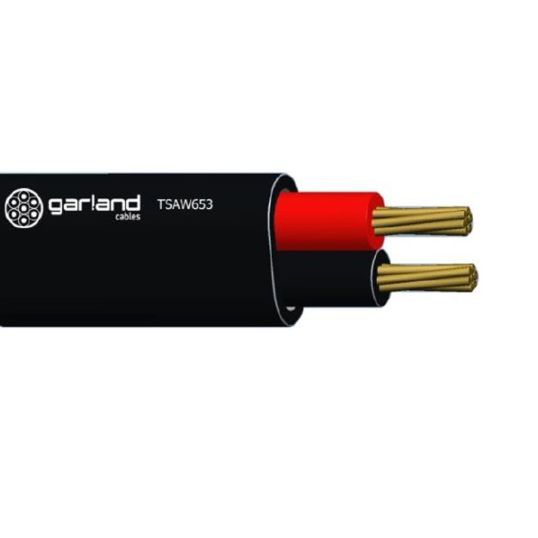

Garland 4.6mm 2 Core Black Figure 8 Speaker Cable Double Insulated PVC/PVC

Description

Speaker Cable, Figure 8, Double Insulated, 4.6 mm, Annealed Copper, 240 Volt, 2 Core, 65/0.3 mm Strands, 5.8 mm x 9.9 mm Overall Diameter, 58 mm Static Bend Radius, 0.7 mm Insulation Thickness, 0.6 mm Sheath Thickness, 643 N Pulling Tension, DC: 4.3 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, Red/Black Core, PVC Insulation, PVC Sheath, Black Sheath, -15 to 70 deg C, AS/NZS 1125 AS/NZS 3808

Key Specifications

Barcode (EAN-13)	9329849006747
SKU	GARTSAW653500
Brand	Garland
Product Type	Speaker Cable Figure 8 Double Insulated

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TSAW653500
Bend Radius	Static 58 mm
Conductor Resistance	DC: 4.3 Ohm/km
Conductor Size	4.6 mm
Conductor Type	Annealed Copper
Core Colours	Red/Black
Insulation Resistance	50 MOhm/km
Insulation Material	PVC
Insulation Thickness	0.7 mm
Number of Cores	2 Core
Overall Diameter	5.8 mm x 9.9 mm
Pulling Tension	643 N
Sheath Colour	Black
Sheath Material	PVC
Sheath Thickness	0.6 mm
Temperature	-15 to 70 deg C
Standards	AS/NZS 1125 AS/NZS 3808
Stranding	65/0.3 mm
Voltage	240 Volt
