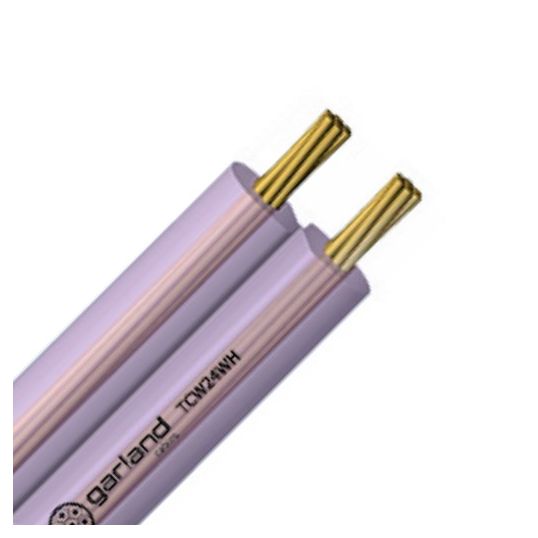

Garland Pro Series Figure 8 Security Cable 0.75mm 24/0.2mm PVC/PVC Clear 500M 250V

Description

Figure 8 Security Cable, 250V/250 AC Volt, 0.75 mm, PACW, 1.13mm Conductor Diameter, Bend Radius: Install: 27mm, 2 Core, Elongation: Insulation: >100%, Pulling Tension: 105 N, Stranding: 24/0.2mm, Insulation Thickness: 0.75mm, Conductor Resistance: DC: <=26 Ohm/km at 20 deg C, PVC V75 Insulation, PVC Sheath, Clear Insulation, Clear Sheath, 500 mtr Length,-15 to 70 deg C

Key Specifications

Barcode (EAN-13)	9329849003807
SKU	GARTCW24CL500
Brand	Garland
Product Type	Security Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TCW24CL500
Bend Radius	Install: 27mm
Conductor Resistance	DC: <=26 Ohm/km at 20 deg C
Conductor Diameter	1.13mm
Conductor Size	0.75 mm
Conductor Type	PACW
Elongation	Insulation: >100%
Insulation Material	PVC V75
Insulation Colour	Clear
Insulation Thickness	0.75mm
Number of Cores	2 Core
Pulling Tension	105 N
Sheath Colour	Clear
Sheath Material	PVC
Stranding	24/0.2mm
Temperature	-15 to 70 deg C
