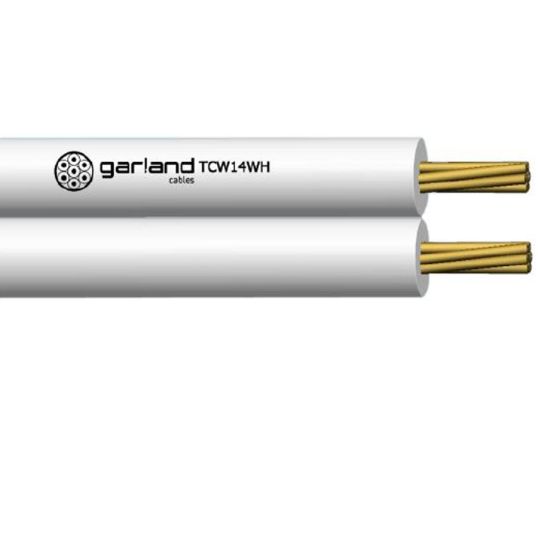

Garland 0.215mm 2 Core White/Black Trace Flexible Cable Figure 8 PVC/

Description

Flexible Cable, Figure 8, 0.215 mm, Annealed Copper, 250 Volt, 2 Core, 14/0.2 mm Strands, 2.2 mm x 4.4 mm Overall Diameter, 22 mm Static Bend Radius, 0.6 mm Insulation Thickness, 61 N Pulling Tension, DC: 45.2 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, PVC Insulation, White/Black Trace Sheath, -15 to 70 deg C, AS/CA S008

Key Specifications

SKU	GARTCW14WH250
Brand	Garland
Product Type	Flexible Cable Figure 8

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	250
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TCW14WH250
Bend Radius	Static 22 mm
Conductor Resistance	45.2 Ohm/km
Conductor Type	Annealed Copper
Insulation Material	PVC
Insulation Resistance	50 MOhm/km
Insulation Thickness	0.6 mm
Number of Cores	2 Core
Overall Diameter	2.2 mm x 4.4 mm
Pulling Tension	61 N
Sheath Colour	Black/White Trace
Standards	AS/CA S008
Temperature	-15 to 70 deg C
Stranding	14/0.2 mm
Voltage	250 Volt
