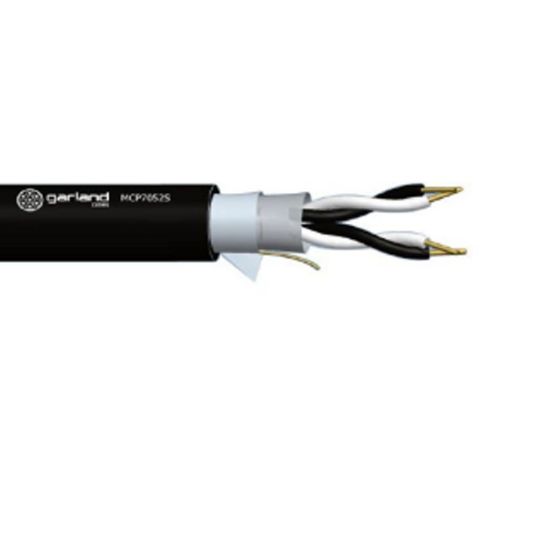

Garland Pro Series Instrumentation Cable Unarmoured 1 Pair Overall Screened 1.5mm 110/150V PVC/AL/PVC Black

Description

Instrumentation Cable, Unarmoured, 1 Pair, Overall Screened, 1.5 mm, Plain Annealed Copper, 110/150 Volt, 7/0.5 mm Strands, 6.1 mm Overall Diameter, Bend Radius: Static - 61 mm, 0.3 mm Insulation Thickness, 0.75 mm Sheath Thickness, Elongation: Insulation - >100% Outer Sheath - >100%, 166 N Pulling Tension, >12 MPa Tensile Strength, Conductor Resistance: DC - 13.6 Ohm/km, 100% Screen Coverage, Aluminium/Polyester Tape Screen, V-90HT PVC Insulation, 5V-90 PVC Sheath, Black White & Numbered Cores, Black Sheath, -15 to 90 deg C, AS/NZS 1125, AS/NZS 3808, AS/ACIF S008: 2006, IEC 60332-1

Key Specifications

Barcode (EAN-13)	9329849009212
SKU	GARMCP7051S2000
Brand	Garland
Product Type	Instrumentation Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	2000
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MCP7051S2000
Bend Radius	Static 61 mm
Conductor Resistance	DC: 13.6 Ohm/km
Conductor Size	1.5 mm
Conductor Type	Annealed Copper
Core Colours	Black/White Numerals
Elongation	Insulation: >100% Outer Sheath: >100%
Insulation Material	V-90HT PVC
Number of Pairs	1 Pair
Insulation Thickness	0.3 mm
Overall Diameter	6.1 mm
Pulling Tension	166 N
Screen Coverage	100%
Screen Format	Overall Screened
Screen Material	Aluminium/Polyester Tape
Sheath Colour	Black
Sheath Thickness	0.75 mm
Sheath Material	5V-90 PVC
Standards	AS/NZS 1125 AS/NZS 3808 AS/ACIF S008: 2006 IEC 60332-1
Stranding	7/0.5 mm
Temperature	-15 to 90 deg C
Tensile Strength	>12 MPa
Voltage	110-150 Volt
