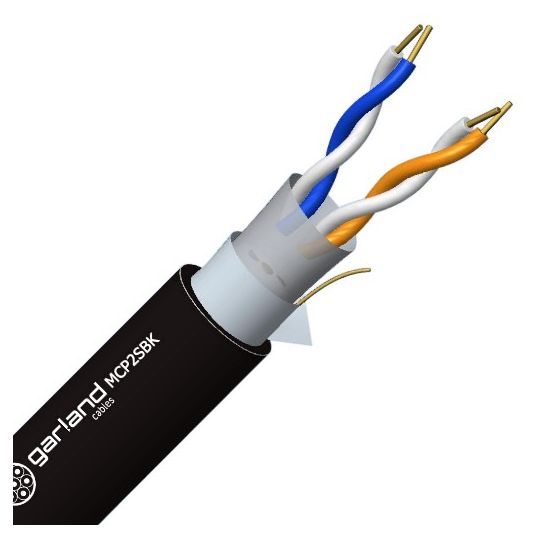

Garland Pro Series Data Cable 2 Pair Overall Screened 0.22mm PP/AL/PVC Signal Black

chevron-left
loader
Loading...

Description

chevron-down
Data Cable, 2 Pair, Overall Screened, 0.22 mm, Tinned Annealed Copper, 7/0.2 mm Strands, 5.5 mm Overall Diameter, Bend Radius: Static - 55 mm, 0.28 mm Insulation Thickness, 0.65 mm Sheath Thickness, Elongation: Insulation - >150% Outer Sheath - >100%, 61 N Pulling Tension, Tensile Strength: >12 MPa, Conductor Resistance: DC - 95.3 Ohm/km, Insulation Resistance: 1000 MOhm/km, 100% Screen Coverage, Aluminium/Polyester Tape, Polypropylene Insulation, PVC Sheath, Blue & White/Blue Stripe Orange & White/Orange Stripe Cores, Signal Black RAL 9004 Sheath, -15 to 70 deg C, AS/CA S008, UL758, EIA-RS422, AS 1049

Key Specifications

chevron-down
SKU
GARMCP2SBK500
Brand
Garland
Product Type
Data Cable

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 500
UNSPSC Class 26121600
UOM MTR
Vendor Product MCP2SBK500
Bend Radius Static 55 mm
Conductor Resistance DC: 95.3 Ohm/km
Conductor Size 0.22 mm
Conductor Type Tinned Annealed Copper
Core Colours Blue/White/Orange
Elongation Insulation: >150% Outer Sheath: >100%
Insulation Resistance 1000 MOhm/km
Insulation Material Polypropylene
Insulation Thickness 0.28 mm
Number of Pairs 2 Pair
Overall Diameter 5.5 mm
Pulling Tension 61 N
Screen Coverage 100%
Screen Format Overall Screened
Screen Material Aluminium/Polyester Tape
Sheath Colour Signal Black
Sheath Material PVC
Sheath Thickness 0.65 mm
Temperature -15 to 70 deg C
Standards AS/CA S008 UL758 EIA-RS422 AS 1049
Stranding 7/0.2 mm
Tensile Strength >12 MPa
