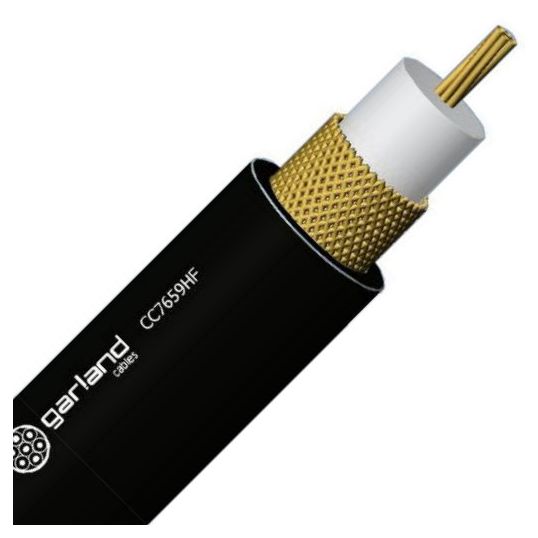

Garland Pro Series RG59B/U Coaxial Cable 75Ohm 0.35mm 7/0.25mm PE/LSHF Black

Description

RG59B/U Coaxial Cable, 0.35 mm, PACW, 0.77mm Conductor Diameter, Bend Radius: Install: 62mm, Elongation: Before Aging Sheath: >125%, Pulling Tension: 162 N, Tensile Strength: Sheath Before Aging >8 MPa, Stranding: 7/0.25mm, Insulation Thickness: 1.1mm, Sheath Thickness: 1.1mm, Conductor Resistance: DC: 55 Ohm/km at 20 deg C, Capacitance: Conductor to Shield: 56 +/-2 pF/mtr, 75 +/-3 Ohm Impedance, PACW 98% Coverage Braid, Foam Polyethylene Insulation, LSHF Sheath, Black (RAL 9004) Sheath, 6.2mm Overall Diameter,-30 to 90 deg C

Key Specifications

Barcode (EAN-13)	9329849000424
SKU	GARCC7659HF500
Brand	Garland
Product Type	Coax Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	43221700
UOM	MTR
Vendor Product	CC7659HF500
Bend Radius	Install: 62mm
Braid Material	PACW 98% Coverage
Conductor Resistance	DC: 55 Ohm/km at 20 deg C
Conductor Diameter	0.77mm
Capacitance	Conductor to Shield: 56 +/-2 pF/mtr
Conductor Size	0.35 mm
Conductor Type	PACW
Elongation	Before Aging Sheath: >125%
Insulation Material	Foam Polyethylene
Insulation Thickness	1.1mm
Overall Diameter	6.2mm
Pulling Tension	162 N
Sheath Colour	Black
Sheath Material	LSHF
Sheath Thickness	1.1mm
Stranding	7/0.25mm
Temperature	-30 to 90 deg C
Tensile Strength	Sheath Before Aging >8 MPa
