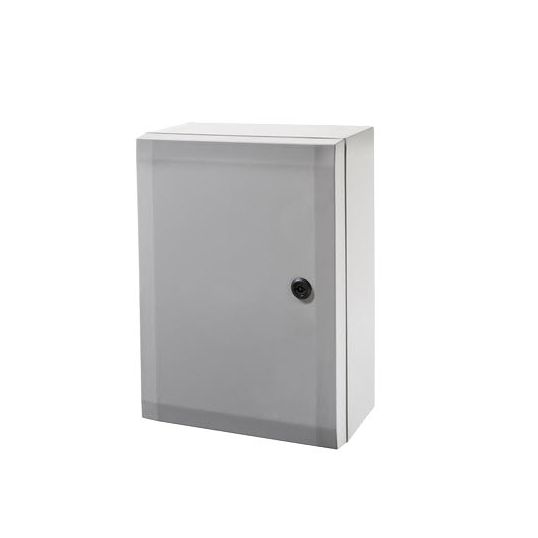

Fibox Enclosure Single Door Light Grey IP66 Polycarbonate 200 Wx300 Dx150 H mm

chevron-left
loader
Loading...

Description

chevron-down
Enclosure Single Door, Number of Doors: 1, DIN Rail Mount, IP66, NEMA 4, 4X, 12, 13, Polycarbonate, RAL7035 Light Grey, 150 mm Height, 200 mm Width, 300 mm Depth

Key Specifications

chevron-down
SKU
FIBARCA302015
Brand
Fibox
Range Name
ARCA
Product Type
Enclosures Metal

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Fully electrically insulated, corrosion proof and weighing up to 60% less than steel makes them a perfect alternative to stainless steel
  • Easily customised and machined with easy to use accessories makes installation a dream
  • UV protection according to UL 508 and IP66 rating ensures the ARCA enclosures stand the test of time in outdoor conditions
  • IK10 impact protection rating provides excellent protection against vandalism
  • Patented strong hinge design to withstand regular door opening to 120 deg and the fitting of door mounted components
  • Patented lockable inner door no tools required for mounting
  • Patented easy to use DIN-rail frame set design no special tools required easy and quick mounting
  • Mounting pods on the base, cover and four base sides
  • Variable depth option for internal plates
  • Double corner design with mounting holes outside the ingress protected area
Standard Pack Size 1
UNSPSC Class 39121300
UOM EA
Vendor Product ARCA302015
Colour RAL7035 Light Grey
IP Rating IP66
Height 150 mm
Width 200 mm
Depth 300 mm
Housing Material Polycarbonate
Mounting Method DIN Rail
NEMA Rating NEMA 4/4X/12/13
Number of Doors 1
