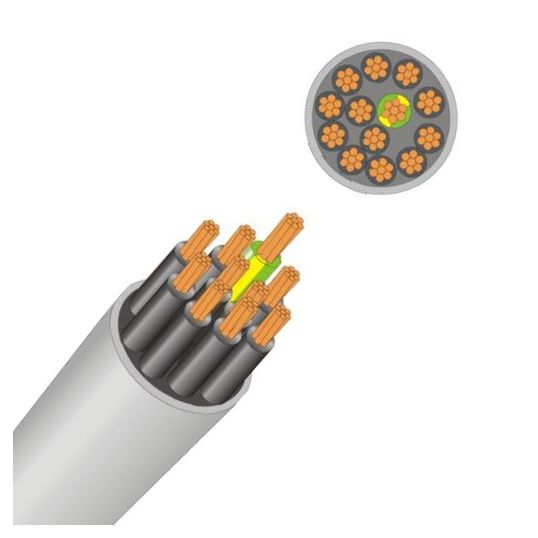

Electra Ordinary Duty Flexible Cable 8 Core & Earth 1.5mm 250/440V Plain Annealed Copper PVC/PVC Grey
Loading...
Description
Flexible Cable, 1.5 mm, Annealed Copper, 250-440 Volt, 8 Core + Earth, 14.5 mm Overall Diameter, 0.7 mm Insulation Thickness, 1.3 mm Sheath Thickness, V-90HT PVC Insulation, V-90 PVC Sheath, Grey Sheath, 90 deg C, AS/NZS 5000.1 IEC 60227-7:2003 AS/NZS 1125 AS/NZS 3808
Key Specifications
| SKU |
ELCF8015E
|
|---|---|
| Brand |
Electra
|
| Product Type |
Flexible Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | F8015E |
| Conductor Size | 1.5 mm |
| Conductor Type | Annealed Copper |
| Insulation Material | V-90HT PVC |
| Insulation Thickness | 0.7 mm |
| Number of Cores | 8 Core + Earth |
| Overall Diameter | 14.5 mm |
| Sheath Colour | Grey |
| Sheath Material | V-90 PVC |
| Sheath Thickness | 1.3 mm |
| Standards | AS/NZS 5000.1 IEC 60227-7:2003 AS/NZS 1125 AS/NZS 3808 |
| Temperature | 90 deg C |
| Voltage | 250-440 Volt |
