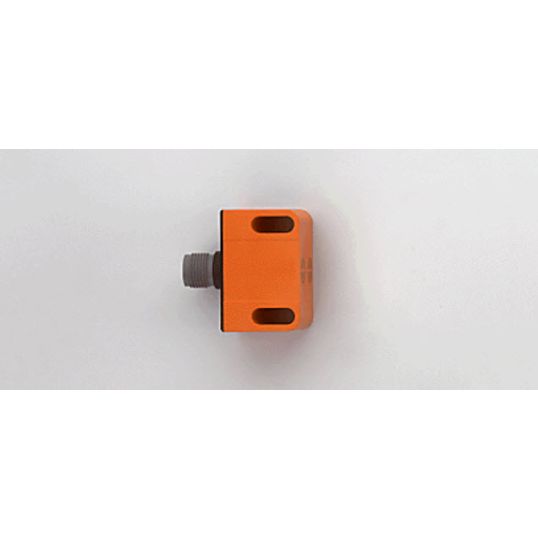

Efector Proximity Switch Inductive Sensing Unshielded Non-Flush 10-36VDC PNP 1NO M12 Plug

Description

Proximity Switch Inductive Sensing Unshielded Non-Flush, Rectangular, Sensing Range: 4 mm, PNP, 10-36 Volt DC, 15 mA, M12 Plug, NO, LED, Non-Flush Mount, IP67, PBT, -25 to 80 deg C, Length: 40 mm, 26 mm Width, 26 mm Depth

Key Specifications

SKU	EFFIN5225
Brand	Efector
Product Type	Proximity Sensors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For monitoring valve positions For reliable position feedback on valve actuators Non-contact and self-cleaning system Quick and secure mounting with only three screws High shock and vibration resistance
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	IN5225
Connection Type	M12 Plug
Current	15 mA
Contact Configuration	Normally Opened
Depth	26 mm
Display	LED
IP Rating	IP67
Material	PBT
Output Function	PNP
Operating Voltage	10-36 Volt DC
Mounting Method	Non-Flush
Sensing Range	4 mm
Shape	Rectangular
Width	26 mm
Temperature	-25 to 80 deg C
