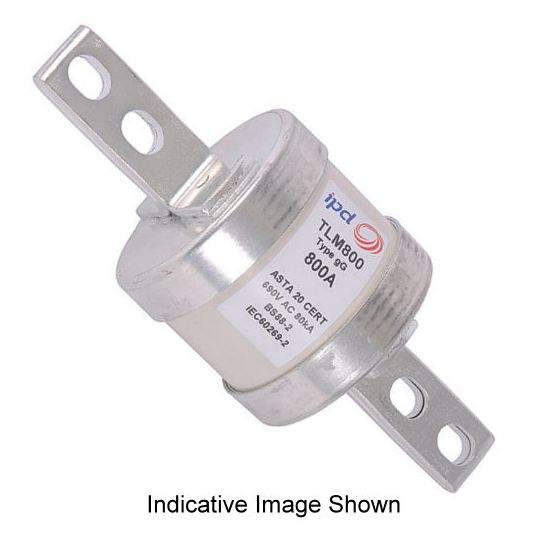

IPD Fuse Link HRC 4 Hole Fixing Bolt In Centre Motor Rated 800 Amp 660VAC 80 kA Class gG BS88 Type C3
Loading...
Description
Fuse Link HRC 4 Hole Fixing Bolt In Centre, 660 VAC, 800 Amp, Class gG, Interrupt Capacity: 80 kA, 133/184mm Fixing Centres, Bolt In Centre Motor Rated Tag, 82.5mm Diameter x 209.6mm Length, BS88 Type C3
Key Specifications
| Barcode (EAN-13) |
5050096003206
|
|---|---|
| SKU |
EEFTLM800
|
| Brand |
IPD
|
| Range Name |
Red Spot
|
| Product Type |
Fuse Links HRC
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | TLM800 |
| Dimensions | 82.5 mm Diameter x 209.6 mm Length |
| Current | 800 Amp |
| Fixing Centres | 133/184 mm |
| Interrupt Capacity | 80 kA |
| Standard Reference | BS88 Type C3 |
| Utilisation Category | Class gG |
| Tag Type | Bolt In Centre Motor Rated |
| Voltage | 660 Volt AC |
