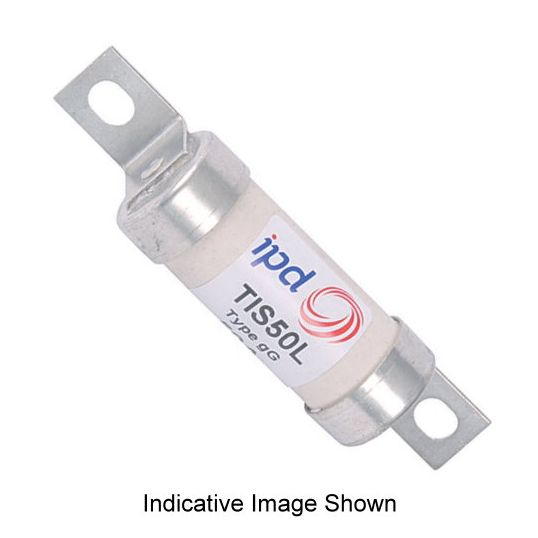

IPD HRC Fuse Link Bolt In Offset Motor Rated 63M100 Amp 415VAC/250VDC 80 kA Class gG BS88 Type A3

Description

Fuse Link HRC Bolt In Offset Motor Rated, 415 VAC/250VDC, 63M100 Amp, Class gG, Interrupt Capacity: 80 kA at 415 VAC, 40 kA at 250 VDC, 73mm Fixing Centres, Bolt In Offset Motor Rated Tag, 23.8mm Diameter x 85.8mm Length, BS88 Type A3

Key Specifications

Barcode (EAN-13)	9322017011734
SKU	EEFTIS63M100L
Brand	IPD
Range Name	Red Spot
Product Type	Fuse Links HRC Bolt In

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For use with RS63 and RSM100 holders Fault current limitation, distribution/cable protection, equipment/switchgear protection, motor/starter protection
Standard Pack Size	10
UNSPSC Class	39121600
UOM	EA
Vendor Product	TIS63M100L
Dimensions	23.8mm Diameter x 85.8mm Length
Current	100 Amp
Fixing Centres	73mm
Interrupt Capacity	80 kA
Standard Reference	BS88 Type A3
Utilisation Category	Class gG
Tag Type	Bolt In Offset Motor Rated
Voltage	415 Volt AC/250Volt DC
