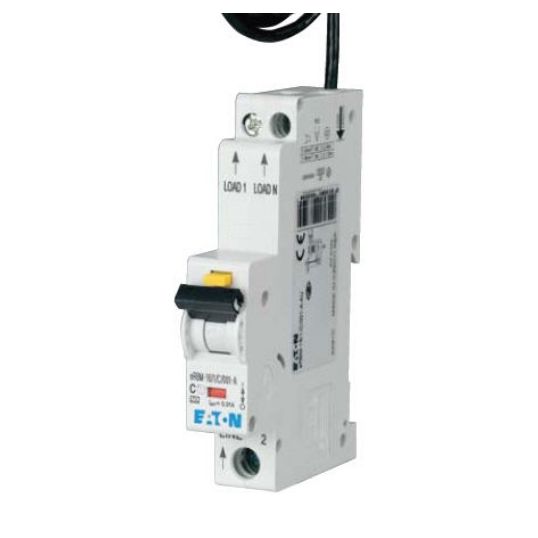

Eaton Combination RCD Circuit Breaker RCBO 2 P (1 Ph+N)Pole 32 Amp 240V AC 6 kA 1Module 18mm DIN Rail

Description

Combination RCD Circuit Breaker RCBO, 32 Amp, 240 Volt AC, 50/60 Hz, Interrupt Capacity: 6 kA, Trip Sensitivity: 30 mA, Number of Poles: 2P (1 Ph + N), Number of Modules: 1, 18mm Module Width, Trip Characteristic: C Curve, 1-25 mm Terminal Connection, Open Mouthed/Lift, IP40, DIN Rail,-25 to 40 deg C, 102.6mm Height, 17.7mm Width, 60mm Depth

Key Specifications

SKU	EATERB6-32/1/C/003AU
Brand	Eaton
Range Name	eRB6-AU
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Short length of 103mm, suitable for compact distribution boards and consumer units Specific for applications in the chassis mounted distribution boards, permanently connected neutral conductors Contact position indicator red-green Comprehensive range of accessories suitable for subsequent installation Guide for secure terminal connection Wide variety of rated tripping currents including Type A which offers higher immunity to nuisance tripping Can be sealed with leads in the on and off position
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	ERB6-32/1/C/003-AU
Current	32 Amp
Connection Type	Open Mouthed/Lift
Depth	60 mm
Height	102.6 mm
Frequency	50/60 Hz
IP Rating	IP40
Interrupt Capacity	6 kA
Modules	1 Module 18 mm
Mounting Method	DIN Rail
Number Of Poles	2 Pole
Terminal Connection	1-25 sq-mm
Temperature	-25 to 40 deg C
Trip Characteristic	C Curve
Voltage	240 Volt
Trip Sensitivity	30 mA
Width	17.7 mm
