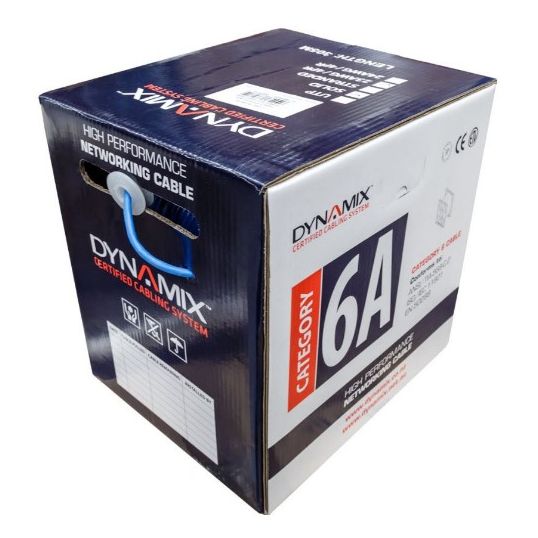

Dynamix S/FTP Network Cable High Performance Cat6A 4 Pair 23AWG Polyethylene/PVC Blue 305M

$Dynamix\Dynamix_C-C6A1-SLD.jpg$

Description

S/FTP Network Cable High Performance Cat6A 4 Pair, 23 AWG, 0.56mm Conductor Diameter, 9.38 Ohm/100 mtr Conductor Resistance, 4 Pair, Aluminium Foil Shielded, 500 MHz Bandwidth, Cat6A S/FTP Cable, Solid Bare Copper Conductor, Foam PE Insulation, PVC Sheath, Blue Sheath, 305 mtr Length, 7.5 +/-0.5mm Outside Diameter

Key Specifications

SKU	DYNC-C6A1-SLDBLUE
Brand	Dynamix
Product Type	Network Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	43223300
UOM	RO
Vendor Product	DYNC-C6A1-SLDBLUE
Cable Type	Cat6A S/FTP
Conductor Diameter	0.56 mm
Conductor Material	Solid Bare Copper
Conductor Resistance	9.38 Ohm/100 mtr
Conductor Size	23 AWG
Frequency Bandwidth	500 MHz
Insulation Material	Foam PE
Outside Diameter	7.5 +/-0.5 mm
Pair Count	4 Pair
Sheath Colour	Blue
Sheath Material	PVC
Shielded Type	Aluminium Foil
