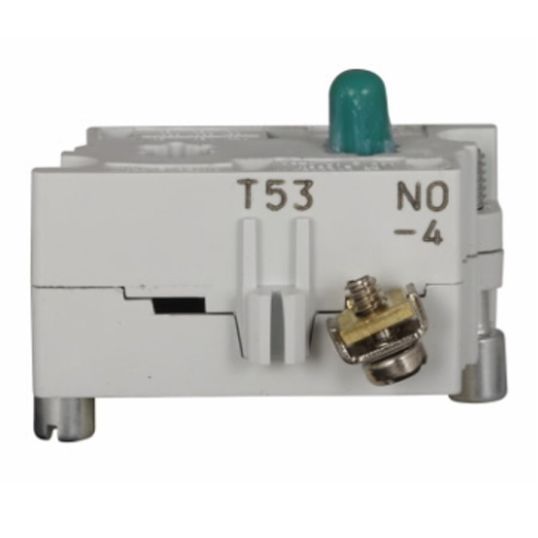

Eaton Cutler Hammer Operator Contact Block With Screw Terminals 1N.O 30.5mm

Description

Operator Contact Block With Screw Terminals, Size: 30.5 mm, 1NO, Screw Terminal, IP66, Die-Cast Zinc, For Use With: Standard Pushbutton

Looking for something specific? Search with keywords to help filter your required specifications.

Features	Die-cast metal housings create robust and heavy duty devices that can endure repetitive and heavy handed use in industrial environment IP66 rated for protection against dirt and moisture Contact blocks are colour coded (green for N.O. and red for N.C.) to permit easy identification and troubleshooting Up to 6 contact blocks can stack on each other, allowing for up to 12 circuits per operator Heavy-duty zinc die cast construction Enclosed silver contacts with reliability nibs All normally closed contacts have positive opening operation, i.e., normally closed contacts are forced open in the event of contact weld or spring breakage Grounding nibs on the operator casing Logic level contact blocks have palladium tipped contacts to ensure circuit integrity down to 1 mA at 5 volt AC/DC
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	T53P
Contact Configuration	1 Normally Opened
For Use With	Standard Pushbutton
IP Rating	IP66
Housing Material	Die-Cast Zinc
Terminal Connection	Screw
Size	30.5 mm
