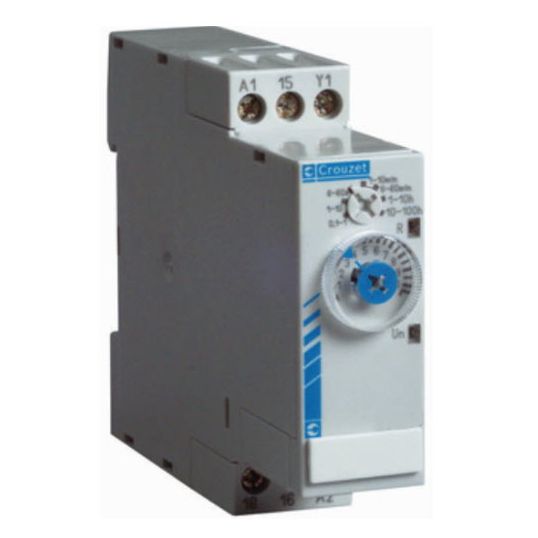

Crouzet Time Delay Relay Electronic 2P 2CO Off Delay 0.6-160s 24VDC/24-240V

Description

Time Delay Relay Electronic, 24 Volt DC/24-240 Volt AC, 8 Amp, 2000 VA/80 Watt, 2 Pole 2CO, Timing Function: Off Delay, Timing Range: 0.6-160 sec, 100000 Electrical, 5000000 Mechanical Cycles, Screw Terminal, IP20, IP40, IP50, Body Self-Extinguishing, -20 to 60 deg C, 78 mm Height, 22.5 mm Width

Key Specifications

SKU	CRZTK2R1
Brand	Crouzet
Product Type	Time Delay Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Relay output Multi-function or mono-function Multi-range Multi-voltage Screw terminals LED status indicator
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	TK2R1
Contact Configuration	2 Pole 2 Changeover
Current	8 Amp
Height	78 mm
IP Rating	IP20/40/50
Operating Cycles	100000 Electrical/5000000 Mechanical Cycles
Power Rating	2000 VA-80 Watt
Temperature	-20 to 60 deg C
Terminal Connection	Screw
Timing Function	Off Delay
Timing Range	0.6-160 Seconds
Voltage	24-240 Volt AC/24 Volt DC
Width	22.5 mm
