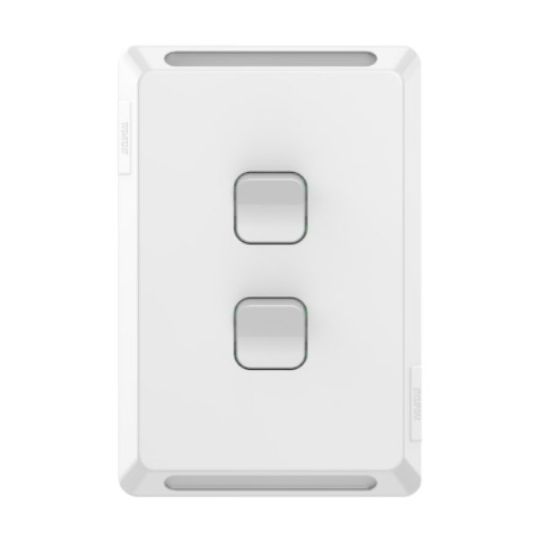

Clipsal Pro Series Switch Wall Mount Rocker 2 Gang 20A/16AX 250V 1 Pole 1/2 Way Vertical White

chevron-left
loader
Loading...

Description

chevron-down
Switch, 230/240 Volt, 20 Amp/16 AX, 1 Pole, 2 Gang, 1, 2 Way, Rocker Switch Actuator, Screw Connection, Vertical Orientation, Wall Mounting, 84 mm Mounting Centres, Polycarbonate/Polypropylene/ABS/Polyoxymethylene, White, Glossy, 0 to 45 deg C, 116 mm Height, 78 mm Width, 38 mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
9311554804572
SKU
CLIP3042VAXW
Brand
Clipsal
Range Name
Pro Series
Product Type
Switches Standard

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Secure clip-on skins
  • No screws needed
  • IK08 impact resistant
Standard Pack Size 10
UNSPSC Class 39122200
UOM EA
Vendor Product P3042VA-XW
Colour White
Actuator Type Rocker Switch
Connection Type Screw
Current 20 Amp/16 AX
Depth 38 mm
Finish Gloss
Height 116 mm
Material Polycarbonate/Polypropylene/ABS/Polyoxymethylene
Mounting Centres 84 mm
Mounting Method Wall
Number Of Gangs 2 Gang
Number Of Poles 1 Pole
Number Of Ways 1, 2
Orientation Vertical
Temperature 0 to 45 deg C
Voltage 230-240 Volt
Width 78 mm
