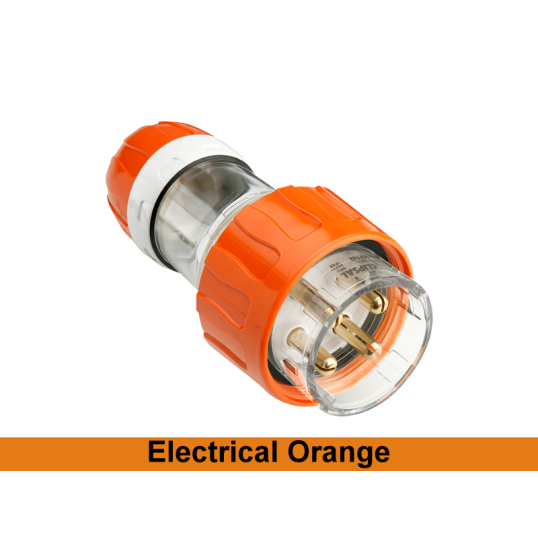

Clipsal Plug Straight Body Weatherproof 3Ph 32A 500V 4 Pin Round Electric Orange IP66
Loading...
Description
Plug Straight Weatherproof, 500 Volt, 32 Amp, Straight Angle, 3 Phase Phase, 4 Pin Round, Screw Connection, 2.5-25 sq-mm Terminal Capacity, Cable Gland Cable Entry, M40 Cable Gland Size, 9-28 mm Cable Nominal Diameter, IP66, Polycarbonate, Orange, -25 to 75 deg C, 79 mm Height, 79 mm Width, 168 mm Depth
Key Specifications
| Barcode (EAN-13) |
9311554198695
|
|---|---|
| SKU |
CLI56P432EO
|
| Brand |
Clipsal
|
| Range Name |
56 Series
|
| Product Type |
Plugs Straight
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 56P432-EO |
| Angle | Straight |
| Cable Entry | Cable Gland |
| Cable Gland Size | M40 |
| Cable Nominal Diameter | 9-28 mm |
| Connection Type | Screw |
| Colour | Orange |
| Current | 32 Amp |
| Depth | 168 mm |
| Height | 79 mm |
| IP Rating | IP66 |
| Material | Polycarbonate |
| Phase | 3 Phase |
| Pin Configuration | 4 Pin Round |
| Temperature | -25 to 75 deg C |
| Terminal Capacity | 2.5-25 sq-mm |
| Voltage | 500 Volt |
| Width | 79 mm |
