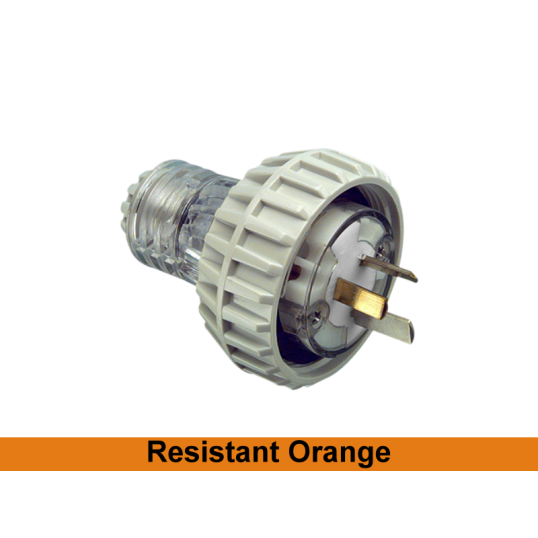

Clipsal Plug Straight Body Weatherproof 1Ph 15A 250V 3 Pin Flat Chemical Resistant Orange IP66
Loading...
Description
Plug Straight Weatherproof, 250 Volt, 15 Amp, Straight Angle, 1 Phase Phase, 3 Pin Flat, Screw Connection, 1.5 sq-mm Terminal Capacity, Cable Gland Cable Entry, M20 Cable Gland Size, IP66, Polybutylene Terephthalate, Orange, -25 to 75 deg C, 67 mm Height, 67 mm Width, 112.5 mm Depth
Key Specifications
| Barcode (EAN-13) |
9311554608569
|
|---|---|
| SKU |
CLI56P315RO
|
| Brand |
Clipsal
|
| Range Name |
56 Series
|
| Product Type |
Plugs Straight
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 56P315-RO |
| Angle | Straight |
| Cable Entry | Cable Gland |
| Cable Gland Size | M20 |
| Connection Type | Screw |
| Colour | Orange |
| Current | 15 Amp |
| Depth | 112.5 mm |
| Height | 67 mm |
| IP Rating | IP66 |
| Material | Polybutylene Terephthalate |
| Phase | 1 Phase |
| Pin Configuration | 3 Pin Flat |
| Temperature | -25 to 75 deg C |
| Terminal Capacity | 1.5 sq-mm |
| Voltage | 250 Volt |
| Width | 67 mm |
