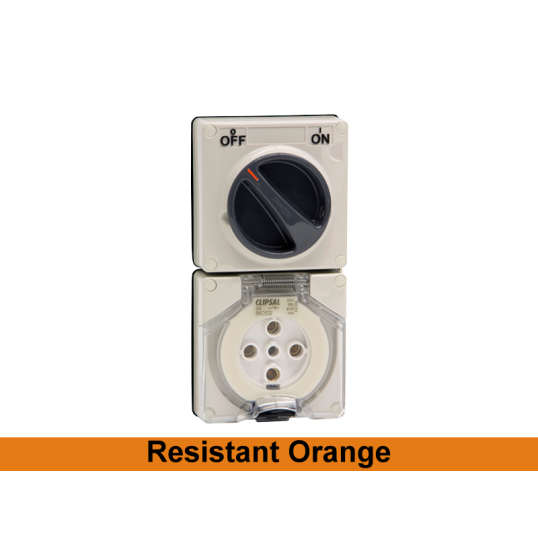

Clipsal 56 Series Switch Socket Outlet Less Enclosure 3Ph 32A 500V 5 Pin Round Resistant Orange IP66

Description

Switch Socket Outlet Less Enclosure, 3 Phase, 32 Amp, 500 Volt AC, 50 Hz, 5 Pole, 5 Pin Round, 3P + N + E, Screw, Terminal Capacity: 4 to 16 mm, Surface Mount, IP66, PC And PET Cover, Phosphor Bronze Pin, Chemical Resistant Orange, 198 mm Height, 101 mm Width, 45 mm Depth, -25 to 75 deg C

Key Specifications

Barcode (EAN-13)	9311554070441
SKU	CLI56C532LERO
Brand	Clipsal
Range Name	56 Series
Product Type	Switch Sockets

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	56C532LE-RO
Colour	Chemical Resistant Orange
Connection Type	Screw
Current	32 Amp
Depth	45 mm
Frequency	50 Hz
Height	198 mm
IP Rating	IP66
Mounting Method	Surface
Number Of Poles	5 Pole
Phase	3 Phase
Pin Configuration	5 Pin Round (3 + Neutral + Earth)
Temperature	-25 to 75 deg C
Terminal Capacity	4-16 mm
Voltage	500 Volt
Width	101 mm
