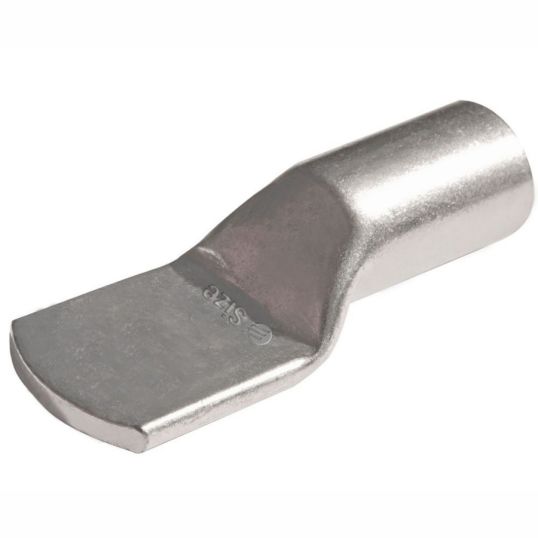

CJS Crimp Lug Standard Heavy Duty with Inspection Hole Copper 630mm Blank Palm 134mm OAL

Description

Heavy Duty Compression Cable Lug, 630 mm, Blank Stud, Standard Barrel Type, 58 mm Barrel Length, 134 mm Overall Length, 34 mm Inside Diameter, 45 mm Outside Diameter, 65 mm Lug Width, 56 mm Lug Length, Annealed Electrolytic Copper Body, Copper, Tin Plated, -55 to 155 deg C, With Inspection Hole

Key Specifications

SKU	CJS-LUG-CU-630-BLANK
Brand	CJS

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Electrolytic copper 99.95% purity Annealed material ensures optimal crimping properties Internal chamfer for easy cable insertion For flexible and stranded copper conductors Voltage rating - according to AS/NZS4325-Part 1 up to 30 kV (Um 36 kV) Double thickness provides a strong ring tongue 100% copper tin plated for corrosion resistance Gauge and size clearly marked for identification
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	CJS-LUG-CU-630-BLANK
Barrel Length	58 mm
Barrel Type	Standard
Body Material	Annealed Electrolytic Copper
Conductive Material	Copper
Conductor Size	630 mm
Finish	Tin Plated
Inside Diameter	34 mm
Lug Length	56 mm
Lug Width	65 mm
Outside Diameter	45 mm
Overall Length	134 mm
Please Note	with Inspection Hole
Stud Size	Blank
Temperature	-55 to 155 deg C
