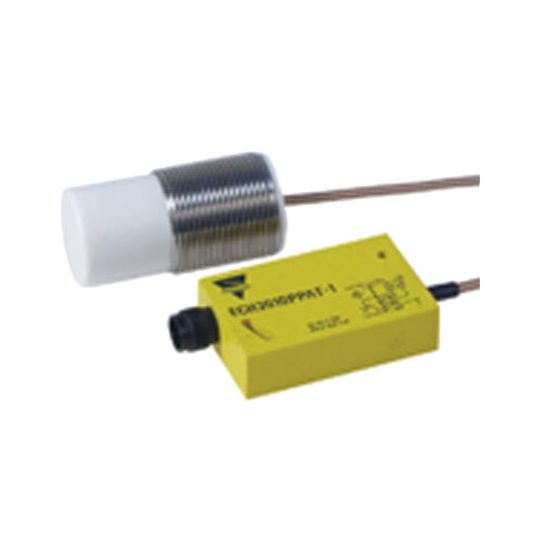

Carlo Gavazzi Proximity Switch Capacitive Sensing Unshielded Non-Flush M30 10-40VDC PNP 1NO-1NC M12 Plug

Description

Proximity Switch Capacitive Sensing Unshielded Non-Flush, Cylindrical Threaded, Sensing Range: 4-15 mm, Straight Through, PNP, 10-40 Volt DC, M12 Plug, 1NO/1NC, Non-Flush Mount, IP67, M30 Stainless Steel, -196 to 180 deg C, 30 mm Diameter, Length: 57 mm

Key Specifications

SKU	CGVECH3010PPAT1
Brand	Carlo Gavazzi
Range Name	Type EC
Product Type	Proximity Sensors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Wide range of operating voltages, current ratings and output types Extensive range of different housing styles and mounting options Specialised versions with IP69K rating available for high-pressure washdown applications for food and beverage industry Specialised loop detector sensors available which are utilised for vehicle detection in the control of boom-gates 5m cable supplied with all sensors with plug-versions
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	ECH3010PPAT1
Connection Type	M12 Plug
Contact Configuration	1 Normally Opened & 1 Normally Closed
Diameter	30 mm
IP Rating	IP67
Material	M30 Stainless Steel
Output Function	PNP
Operating Voltage	10-40 Volt DC
Mounting Method	Non-Flush
Sensing Range	4-15 mm
Sensing Position	Straight Through
Shape	Cylindrical Threaded
Temperature	-196 to 180 deg C
