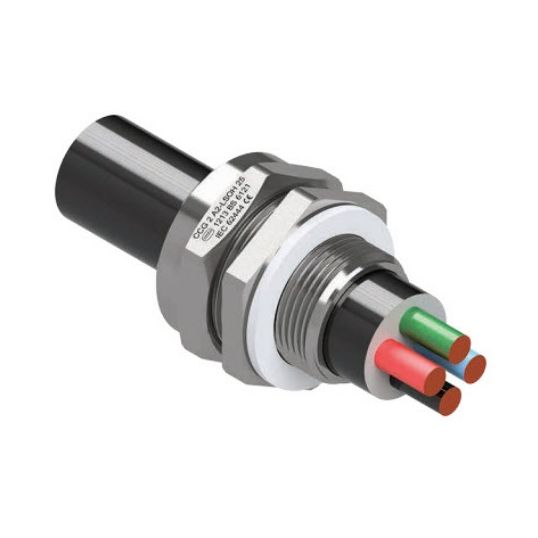

CCG Metal Cable Gland Unarmoured M25x1.5 11.5-17.5mm Nickel Plated Brass IP65/66/68

Description

Cable Gland Metal Unarmoured, M25 x 1.5 mm, 10 mm Thread Length, 1.5 mm, 11.5 mm Min. Sheath OD, 17.5 mm Max. Sheath OD, For Use With Unarmoured Fire Rated Cable, 35 mm Width Across Flats, 39 mm Width Across Corners, 47.5 Nm Torque Rating, IP65/66/68, Brass Body, LSOH Silicon Seal, Nickel Plated, -65 to 175 deg C, 35 mm Overall Length

Key Specifications

SKU	CCG055222
Brand	CCG
Product Type	Cable Glands Metal

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For indoor and outdoor use Seals the cable sheath to IP65/66/68 Silicon seals are fire retardant, low smoke zero halogen and are suitable for extreme temperatures Precision manufactured from high quality brass Flame proof
Standard Pack Size	10
UNSPSC Class	39121400
UOM	EA
Vendor Product	055222
Body Material	Brass
Finish	Nickel Plated
For Use With	Unarmoured Fire Rated Cable
IP Rating	IP65/66/68
Max. Sheath OD	17.5 mm
Overall Length	35 mm
Min. Sheath OD	11.5 mm
Seal Material	LSOH Silicon
Temperature	-65 to 175 deg C
Thread Length	10 mm
Thread Pitch	1.5 mm
Thread Size	M25 x 1.5 mm
Width Across Corners	39 mm
Width Across Flats	35 mm
Torque Rating	47.5 Nm
