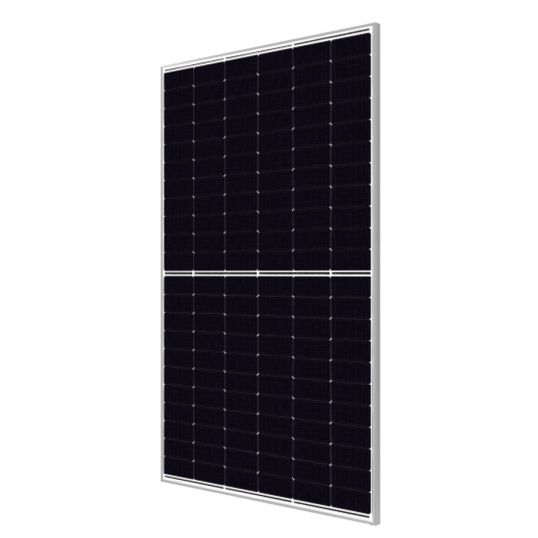

Canadian Solar Solar Panel 620W TOPCon cells 132 Cells 41.2V 15.06A Anodized Aluminum Alloy 12Years Dual Glass 48.4V 2mm

$CanadianSolar\CanadianSolar_CS6.2-66TB.JPG$

Description

Solar Panel, TOPCon cells Cell, 132, 620 Watt, 41.2 Volt Maximum, 15.06 Amp Maximum, 48.4 Volt Open Circuit, 16.08 Amp Short Circuit, 1500 Volt Max. System, 23% Efficiency, 0-10 Watt Power Tolerance, PV-KST4-EVO2/XY, PV-KBT4-EVO2/ XY, PV-KST4-EVO2A/XY, PV-KBT4-EVO2A/XY Connector, IP68 Junction Box

Key Specifications

SKU	CASCS6.2-66TB-620
Brand	Canadian Solar
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Tested up to ice ball of 35 mm diameter according to IEC 61215 standard Minimizes micro-crack impacts Heavy snow load up to 5400 Pa,wind load up to 2400 Pa Lower LCOE and system cost Excellent anti-LeTID & anti-PID performance.Low power degradation, high energy yield
Standard Pack Size	36
UNSPSC Class	26111600
UOM	EA
Vendor Product	CS6.2-66TB-620
Connector Type	PV-KST4-EVO2/XY / PV-KBT4-EVO2/ XY / PV-KST4-EVO2A/XY / PV-KBT4-EVO2A/XY
Efficiency	23%
Frame Construction	Anodized Aluminium Alloy
Front Glass	2 mm
Height	30 mm
Junction Box	IP68
Max. System Voltage	1500 Volt
Max. Voltage	41.2 Volt
Number Of Cells	132
Operating Temperature	-40 to 85 deg C
Please Note	Dual Glass
Power Tolerance	0-10 Watt
Temperature Coefficient	-0.29% / deg C
Warranty	12 Years
Width	2382 mm
