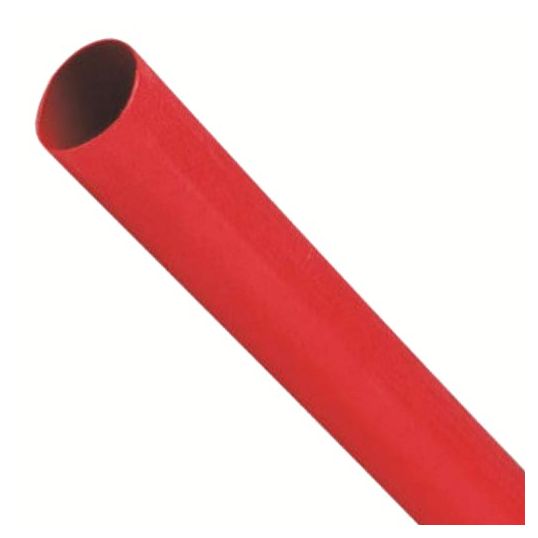

Cabac XLP Heatshrink Tubing Thin Wall Plain Unlined General Purpose 6.4-3.2mm 1.2M Red

chevron-left
loader
Loading...

Description

chevron-down
The CABAC XLP range of thin wall heat shrink tubing is used to insulate, protect and colour code conductors in a range of applications related to the electrical and associated industries. This general-purpose heat shrink provides electrical and mechanical protection, while also defending against environmental factors such as common fluids and/or solvents. Our thin wall heat shrink sleeving is flexible, flame retardant, and resistant to impact, abrasion and UV radiation. The XLP range of heat shrink tubing is made from polyolefin that has been cross-linked using high-energy electron beam technology. Upon the application of heat, the tubing will shrink down to approximately 50% of its pre-shrink diameter to deliver tight-fitting electrical and environmental insulation.

Key Specifications

chevron-down
Barcode (EAN-13)
9318674533795
SKU
CAAXLP7-RD/4FT
Brand
Cabac
Range Name
XLP Tubing
Product Type
Heatshrink Tubing

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Resistant to common fluids, solvents and abrasion
  • UV resistant
Standard Pack Size 1
UNSPSC Class 39121700
UOM LN
Vendor Product XLP7RD/4FT
Colour Red
Dielectric Strength 20 kV/mm
Elongation 400%
Flammability Rating ASTM D2671/VW1
Lining Type Plain Unlined
Shrink Diameter From 6.4 mm
Shrink Diameter To 3.2 mm
Shrink Ratio 2:1
Temperature -75 to 135 Deg C
Shrink Temperature 105 deg C
Tensile Strength 10.4 Mpa
Wall Thickness Recovered 0.56 mm
Wall Type Thin
Voltage 600 Volt
