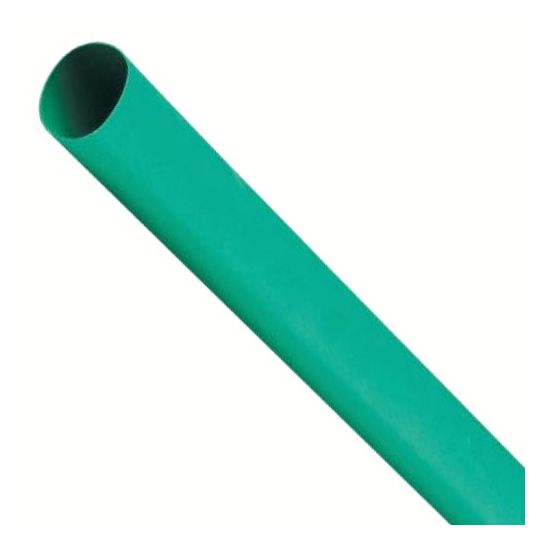

Cabac XLP Heatshrink Tubing Thin Wall Plain Unlined General Purpose 9.5-4.8mm 1.2M Green

Description

Heatshrink Tubing, Thin Wall, Plain Unlined, Shrink Diameter From 9.5 mm to 4.8 mm, Shrink Ratio: 2:1, Wall Thickness Recovered: 0.62 mm, 1.2 mtr Length, 600 Volt, Dielectric Strength: 20 kV/mm, Tensile Strength: 16 MPa, Shrink Temperature: 100 Deg C, Elongation: 400%, Flammability Rating: ASTM-D-2671, VW-1, XLPO, Green, -75 to 135 Deg C

Key Specifications

Barcode (EAN-13)	9318674531494
SKU	CAAXLP10-G/4FT
Brand	Cabac
Range Name	XLP Tubing
Product Type	Heatshrink Tubing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121700
UOM	LN
Vendor Product	XLP10G/4FT
Colour	Green
Dielectric Strength	20 kV/mm
Elongation	400%
Flammability Rating	ASTM-D-2671/VW-1
Lining Type	Plain Unlined
Shrink Diameter To	4.8 mm
Shrink Diameter From	9.5 mm
Shrink Ratio	2:1
Shrink Temperature	100 Deg C
Temperature	-75 to 135 Deg C
Tensile Strength	16 MPa
Voltage	600 Volt
Wall Thickness Recovered	0.62 mm
Wall Type	Thin
