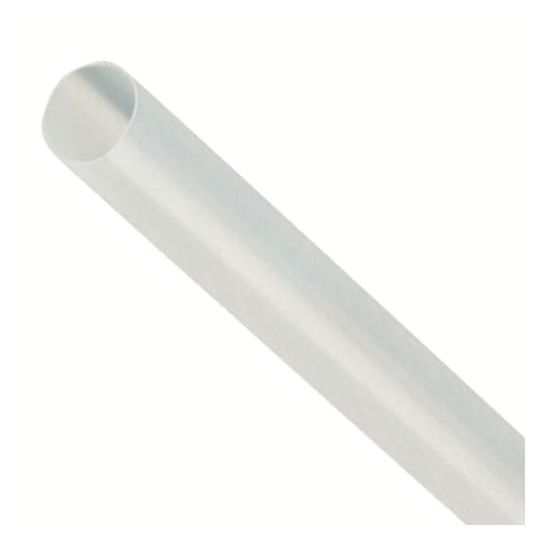

Cabac XLP Heatshrink Tubing Thin Wall Plain Unlined General Purpose 1.6-0.8mm 200M Clear
Description
Key Specifications
Barcode (EAN-13) |
9318674531203
|
---|---|
SKU |
CAAXLP1.5-CL
|
Brand |
Cabac
|
Range Name |
XLP Tubing
|
Product Type |
Heatshrink Tubing
|
Technical Specifications
Additional Information
Features |
|
---|---|
Standard Pack Size | 200 |
UNSPSC Class | 39121700 |
UOM | MTR |
Vendor Product | XLP1.5CL |
Colour | Clear |
Dielectric Strength | 20 kV/mm |
Elongation | 400% |
Flammability Rating | ASTM D2671/VW1 |
Lining Type | Plain Unlined |
Shrink Diameter To | 0.8 mm |
Shrink Diameter From | 1.6 mm |
Shrink Ratio | 2:1 |
Shrink Temperature | 105 deg C |
Temperature | -75 to 135 Deg C |
Tensile Strength | 10.4 Mpa |
Voltage | 600 Volt |
Wall Thickness Recovered | 0.4 mm |
Wall Type | Thin |
