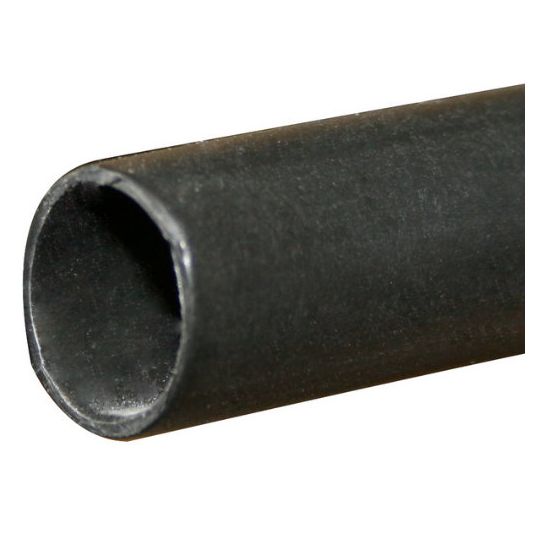

Cabac STDW Heatshrink Tubing Thick Wall Adhesive Lined 15-4mm 1M Black
Loading...
Description
SMDW/STDW flexible heat shrinkable tubing is made from radiation cross linked Polyolefin. Specially designed for insulating, protecting and sealing electrical connections and joints in medium and low-voltage cables. It is also resistant to chemicals, UV, moisture and oils.
Key Specifications
| Barcode (EAN-13) |
9318674704560
|
|---|---|
| SKU |
CAASTDW17/3PA
|
| Brand |
Cabac
|
| Range Name |
STDW Tubing
|
| Product Type |
Heatshrink Tubing
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121700 |
| UOM | EA |
| Vendor Product | STDW17/3PA |
| Colour | Black |
| Dielectric Strength | 19 kV/mm |
| Elongation | 400% |
| Lining Type | Adhesive Lined |
| Material | Cross-Linked Polyolefin |
| Shrink Diameter To | 4 mm |
| Shrink Diameter From | 15 mm |
| Shrink Ratio | 4-1 |
| Shrink Temperature | 130 deg C |
| Temperature | -55 to 135 Deg F |
| Tensile Strength | 14 MPa |
| Wall Thickness Recovered | 2.4 mm |
| Wall Type | Thick |
