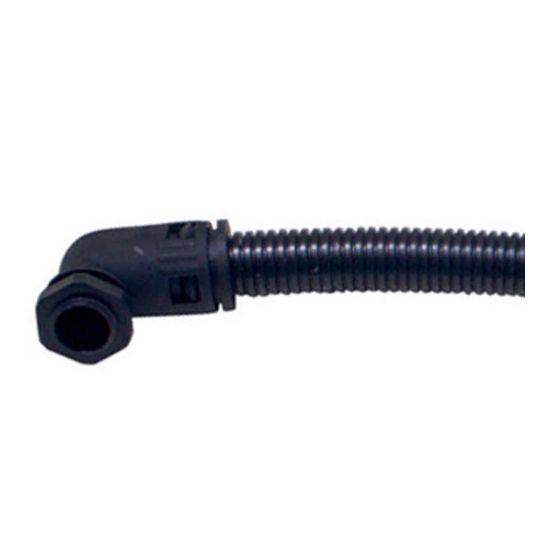

Cabflx Flexible Conduit Corrugated Low Fire Hazard 40mm 10M Nylon PA6 Black

Description

Flexible Conduit, Corrugated, Low Fire Hazard, 40 mm, 36 mm ID, 42.5 mm OD, 10 mtr, 80 mm Bend Radius, IP66, Nylon PA6, Black Sheath, -40 to 115 deg C

Key Specifications

Barcode (EAN-13)	9318674265566
SKU	CAACF040-B-10
Brand	Cabflx
Product Type	Flex Conduit Low Fire Hazard

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	CABFLX Low Fire Hazard Nylon Conduit offers excellent flexibility and mechanical strength for the insulation and protection of electrical cables Made from UV resistant PA6 nylon, the CF range is free from halogen, phosphor and cadmium and resistant to chemicals such as oils, acid and solvents Our CF conduit is rated to the V2 flammability rating as defined in UL94, a standard that provides a method for rating the flammability of plastic materials To comply with the V2 rating, burning must stop within 30 seconds on a vertical specimen; drips of particles are allowed Our nylon conduit systems are suitable for a variety of industry applications, including machine tools, industrial equipment, automotive, air-conditioning equipment, railway rolling stock and other general wiring requirements
Standard Pack Size	1
UNSPSC Class	39131700
UOM	RO
Vendor Product	CF040-B-10
Bend Radius	80mm
Conduit Size	40 mm
Inside Diameter	36mm
IP Rating	IP66
Outside Diameter	42.5mm
Temperature	-40 to 115 deg C
Sheath Colour	Black
