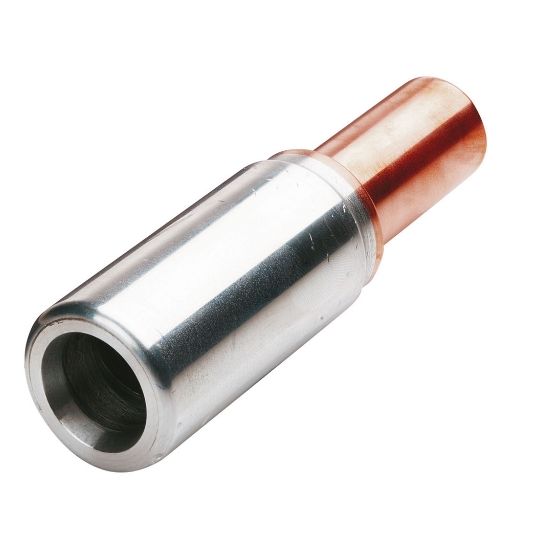

Cabac Crimp Link Reducing Bi-Metal 150mm 120mm 37/2.25 37/2.03 120mm OAL

Description

Crimp Links, Reducing, Bi-Metal, Conductor Size from 150 mm to 120 mm, Number of Strands from 37/2.25 to 37/2.03, Inside Diameter from 16.5 mm to 15.5 mm, 120 mm Overall Length, A/F Hex Die from 22 mm to 16.5 mm, Crimping Die from HT-150/185AL to HT130-C-120, Number of Crimps from 2 to 2, Bi-Metal Body, Aluminium/Copper Barrel Conductor

Key Specifications

Barcode (EAN-13)	9318674505877
SKU	CAABLK150/120
Brand	Cabac
Range Name	Reducing Links Bi-Metal
Product Type	Links Reducing Type

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Manufactured using friction welding process producing a very strong electrically sound joint, which will not be subject to electrolysis Link circular or sector stranded aluminium cable to circular copper cable Designed to be crimped with CABAC and MSS Power tools and dies Crimp with standard hex dies
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	BLK150/120
Body Material	Bi-Metal
Conductive Material	Aluminium/Copper Barrel
From Conductor Size	150 mm
From Crimping Die	HT-150/185AL
From Inside Diameter	16.5 mm
From Number of Crimps	2
From Number of Strands	37/2.25
Overall Length	120 mm
To Conductor Size	120 mm
To Inside Diameter	15.5 mm
To Crimping Die	HT130-C-120
To Number of Crimps	2
To Number of Strands	37/2.03
